Kia Cee'd: ISG (Idle Stop and Go) system / Auto stop
To stop the engine in idle stop mode
1. Decrease the vehicle speed to less than 5 km/h (3 mph).
2. Shift into N (Neutral) position.
3. Release the clutch pedal.
The engine will stop and the green AUTO
STOP(
) indicator on the instrument
cluster will illuminate.

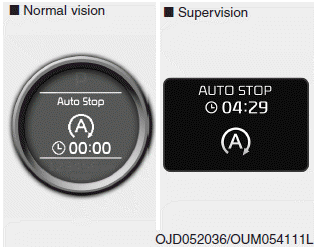

Also, a message "Auto Stop" will appear on the LCD display.
✽ NOTICE
You must reach a speed of at least 10 km/h (6 mph) since last idle stop.
✽ NOTICE
If you unfasten the seatbelt or open the driver's door (or engine hood) in auto stop mode, the following will happen:

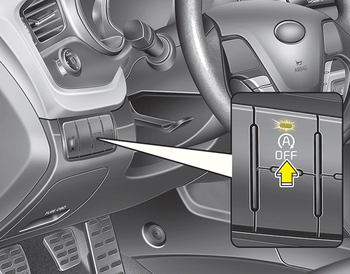

- The ISG system will deactivate (the light on the ISG OFF button will illuminate).

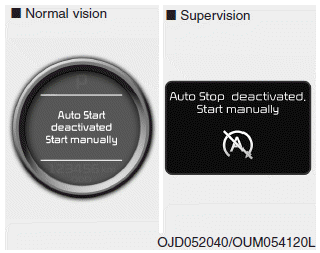

- A message "Auto Start Deactivated Start Manually" will appear on the LCD display.
ISG (Idle Stop and Go) system
Your vehicle may be equipped with the
ISG system, which reduces fuel consumption
by automatically shutting down
the engine, when the vehicle is at a
standstill. (For example : red light, stop ...
Auto Start
To restart the engine from idle stop
mode
Press the clutch pedal when the shift
lever is in the N (Neutral) position.
A message "Press Clutch Pedal for Auto
Start" will appear on the L ...
