Kia Cee'd: Audio / Audio Remote Control Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / Audio / Audio Remote Control Schematic diagrams

Circuit Diagram

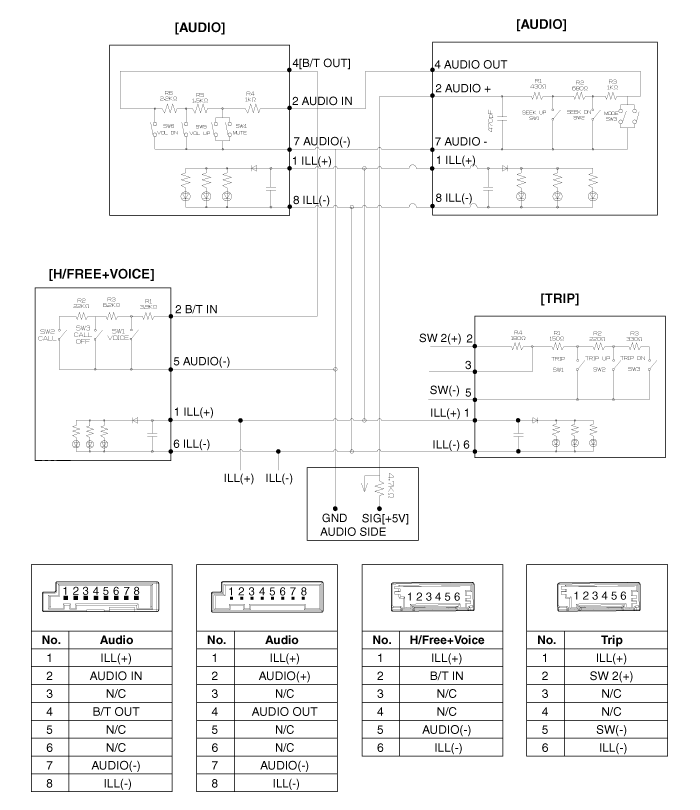

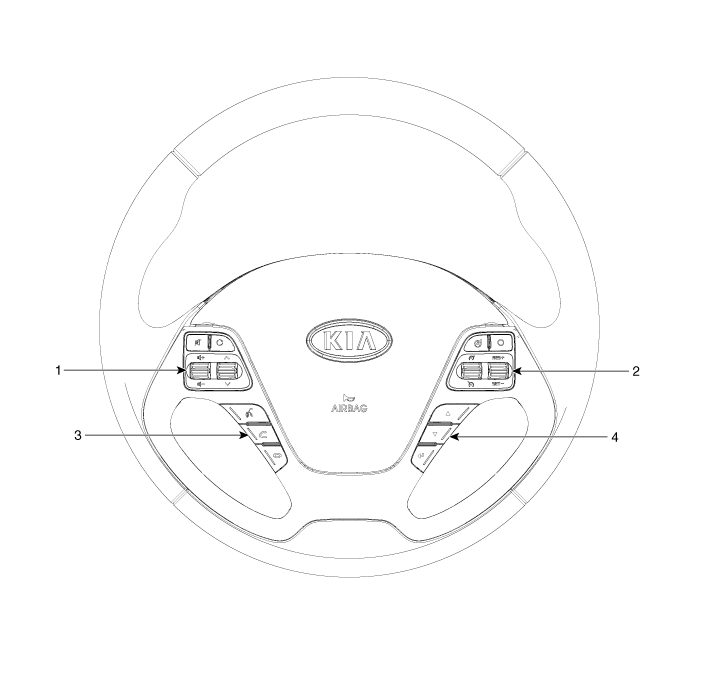

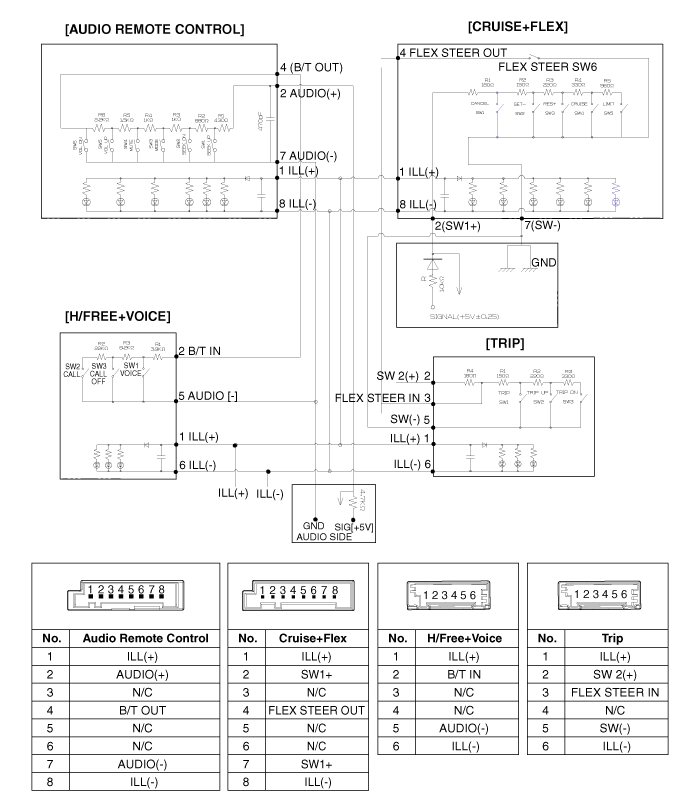

Type A


1. Remote control switch(LH: Audio)
2. Remote control switch(RH: Cruise+Flex)
3. Bluetooth hands free switch
4. Trip switch

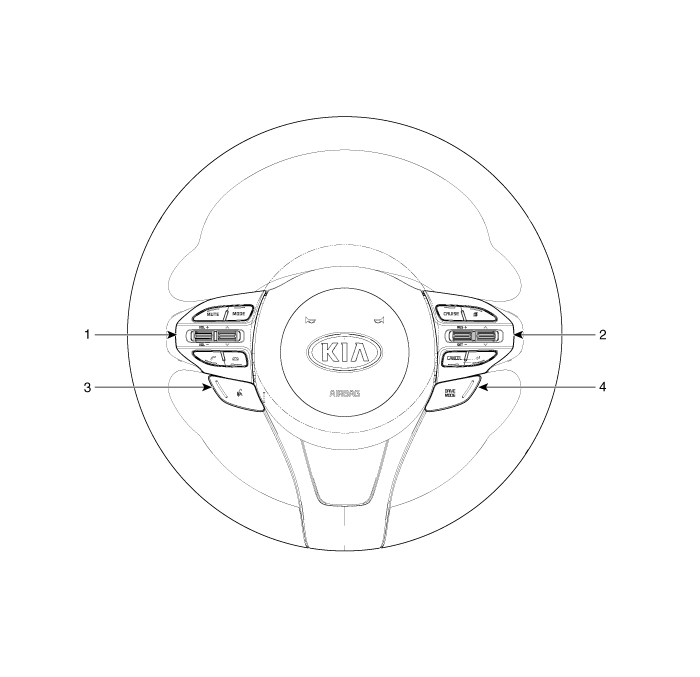

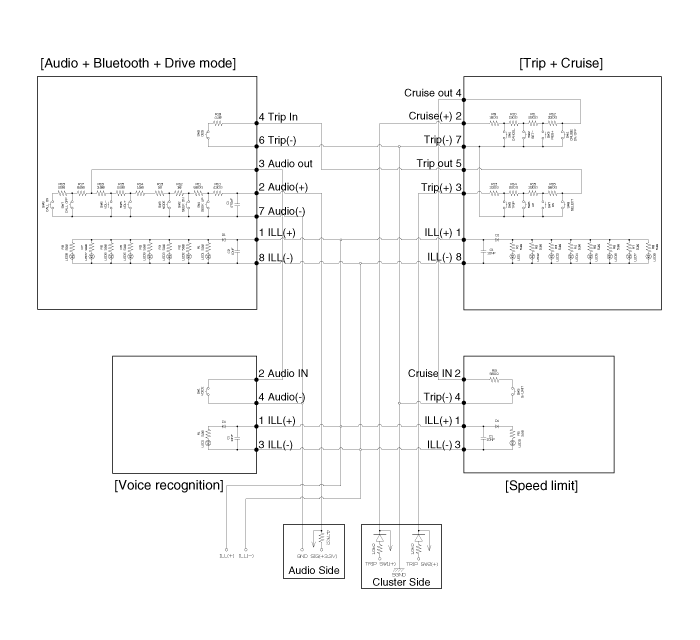

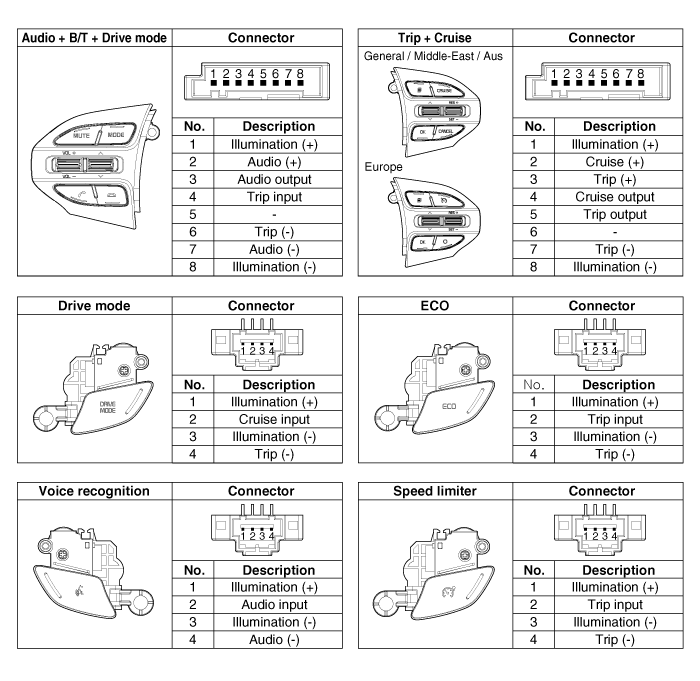

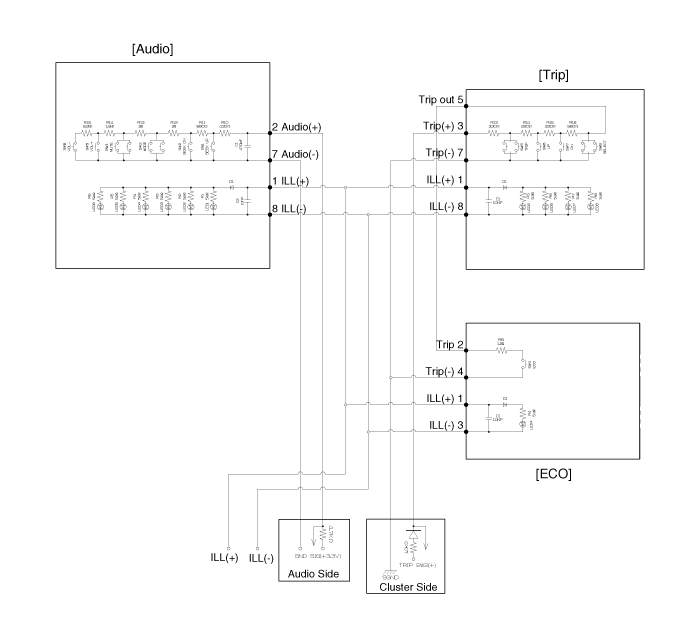

Type B


1. Audio & Drive mode swith
2. Trip & Cruise control switch
3. Voice recognition switch
4. Speed limit switch
