Component Location Index

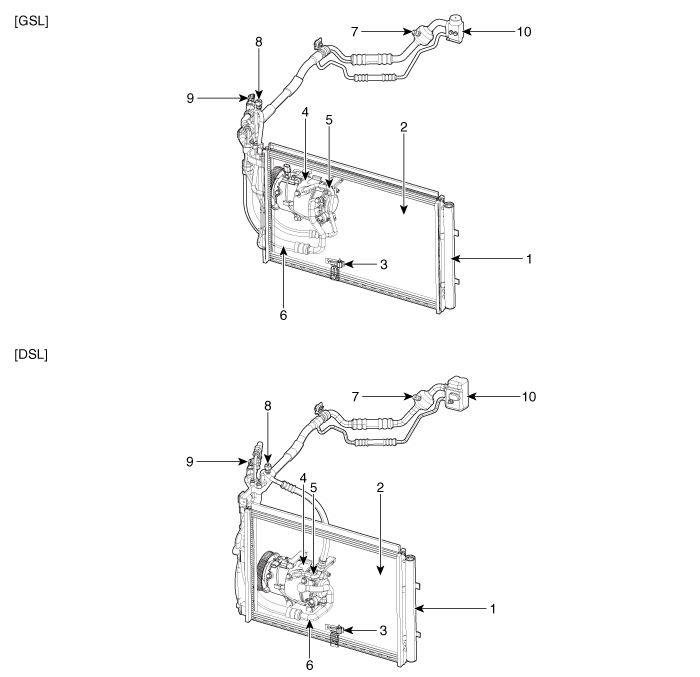

Engine Room


1. Receiver Drier
2. Condenser
3. Ambient Temperature Sensor
4. Compressor
5. Discharge Hose
6. Suction & Liquid Tube Assembly
7. Service Port (Low Pressure)
8. Service Port (High Pressure)
9. A/C Pressure Transducer (APT)
10. Expansion Valve

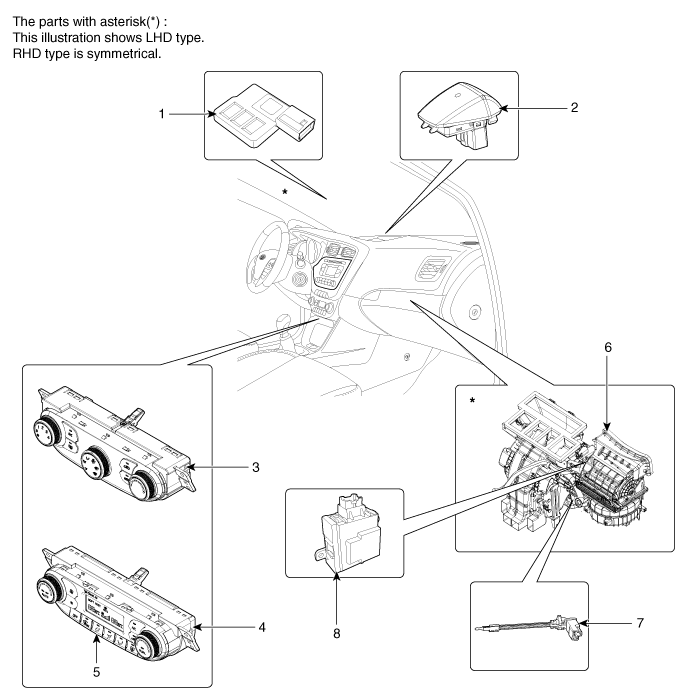

Interior


1. Auto Defogging Sensor
2. Photo Sensor
3. Heater & A/C controller (Manual)
4. Heater & A/C controller (DATC with Audio)
5. In-car Sensor
6. Heater & Blower Unit
7. Evaporator Temperature Sensor
8. Cluster lonizer
