Kia Cee'd: Safety features of your vehicle / Air bag - supplemental restraint system

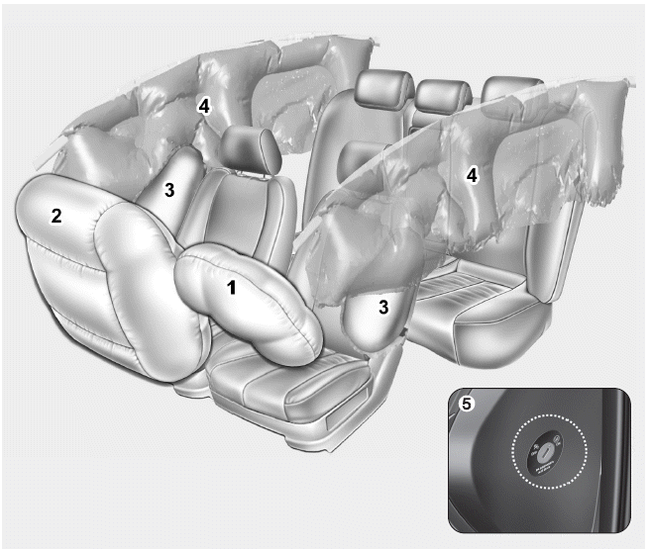

(1) Driver’s front air bag
(2) Passenger’s front air bag
(3) Side impact air bag*
(4) Curtain air bag*
(5) Passenger’s front air bag ON/OFF
switch
WARNING
- Even in vehicles with air bags, you and your passengers must always wear the safety belts provided in order to minimize the risk and severity of injury in the event of a collision or rollover.
- SRS and pretensioners contain explosive chemicals. If scraping a vehicle without removing SRS and pretensioners from a vehicle, it may cause fire. Before scraping a vehicle, we recommend that you contact an authorized Kia dealer.
- Keep the SRS parts and wirings away from water or any liquid. If the SRS components are inoperative due to exposure to water or liquids, it may cause fire or severe injury.
- How does the air bag system operate
- Air bag warning and indicator
- SRS components and functions
- Driver's and passenger's front air bag
- Side impact air bag
- Curtain air bag
- Why didn’t my air bag go off in a collision? (Inflation and non-inflation conditions of the air bag)
- SRS Care
- Additional safety precautions
- Adding equipment to or modifying your air bag-equipped vehicle
- Air bag warning label
How does the air bag system
operate
Air bags are activated (able to inflate if
necessary) only when the ignition
switch is turned to the ON or START
position.
Air bags inflate instantly in the event of
serious frontal o ...
