Kia Cee'd: Headlight and front fog light aiming / Aiming point

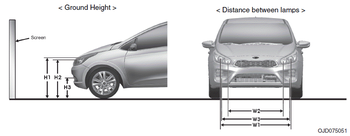

H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
H3 : Height between the fog lamp bulb center and ground
W1 : Distance between the two head lamp bulbs centers (Low beam)
W2 : Distance between the two head lamp bulbs centers (High beam)
W3 : Distance between the two fog lamp bulbs centers

■ 3,5 Door and Wagon

■ 3 and 5Door (for T-GDI)

■ 3,5 Door and Wagon (for Sports Pack)

Front fog light aiming
The front fog lamp can be aimed as the same manner of the head lamps aiming. With the front fog lamps and battery normal condition, aim the front fog lamps. To aim the front fog lamp up or d ...

Head lamp low beam (driver’s side)
■ Based on 10m screen 1. Turn the low beam on without driver aboard. 2. The cut-off line should be projected in the cut-off line shown in the picture. 3. When aiming the low beam, vertical ai ...

Other information:

Kia Cee'd JD Owners Manual: Parking brake - hand type
Checking the parking brake Check the stroke of the parking brake by counting the number of “clicks’’ heard while fully applying it from the released position. Also, the parking brake alone should securely hold the vehicle on a fairly steep grade. If the stroke is more or less th ...

Kia Cee'd JD Owners Manual: Auto stop
To stop the engine in idle stop mode 1. Decrease the vehicle speed to less than 5 km/h (3 mph). 2. Shift into N (Neutral) position. 3. Release the clutch pedal. The engine will stop and the green AUTO STOP() indicator on the instrument cluster will illuminate. Also, a message "Auto St ...
