Kia Cee'd: Smart Parking Assist System (SPAS) / Additional instructions(messages)

When the Smart Parking Assist System is operating, a message may appear regardless of the parking order.

The messages will appear according to the circumstances. Follow the instructions provided while parking your vehicle with the Smart Parking Assist System.

✽ NOTICE

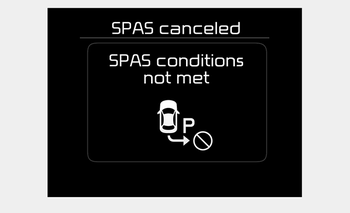

• In the below conditions the system will be cancelled. Park your vehicle manually.

1. Search for parking space
- When the ABS/ESC is activated

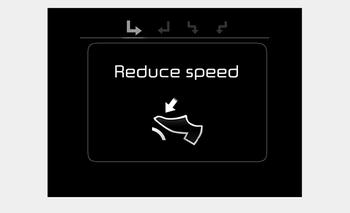

- When the vehicle speed is over 30km/h(18.6mph)
- When you press the Smart Parking Assist System button (the front and rear Parking Assist System operates)
- When you shift the shift lever to R (Reverse)

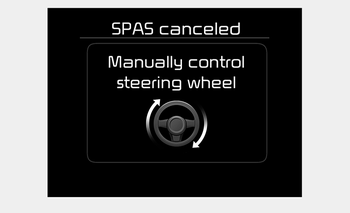

2. Steering wheel control
- When the ABS/ESC is activated
- When the vehicle speed is over 7km/h (4.3 mph)
- When you press the Smart Parking Assist System button (the front and rear Parking Assist System operates)
- When you shift the shift lever to D (Drive) before entering the parking space
- When you hold the steering wheel firmly

5. Exiting Complete
When assisting the driver exit the parking space is completed the above message will appear. Turn the steering wheel to the direction you are leaving and manually control the steering wheel ...

System malfunction
If there is a problem with the system, when the system is turned on, the above message will appear. Also, the indicator on the button will not light up and a beep sound will be heard ...
