Kia Cee'd: ABS(Anti-Lock Brake System) / ABS Control Module Components and components location

Kia Cee'd JD Service Manual / Brake System / ABS(Anti-Lock Brake System) / ABS Control Module Components and components location

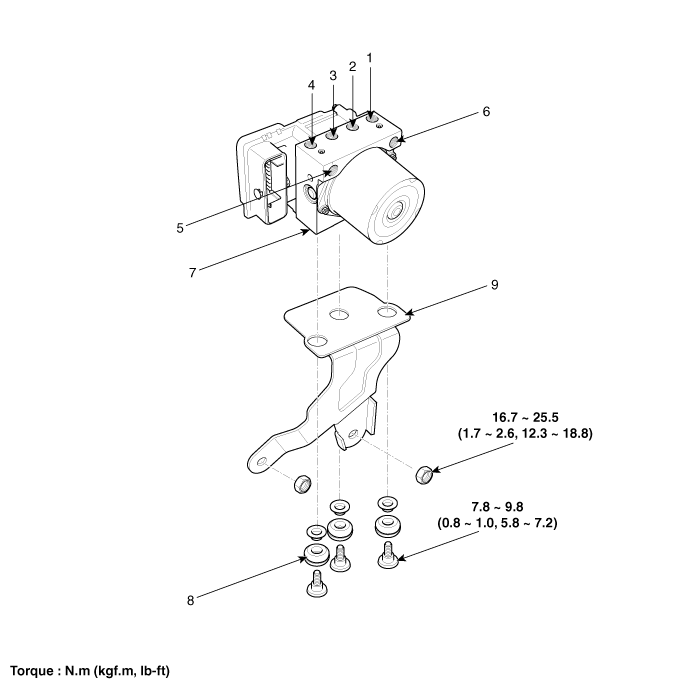

Components


1. Front - left tube
2. Rear - right tube
3. Rear - left tube
4. Front - right tube
5. MC2
6. MC1
7. ABS control module(HECU)
8. Damper
9. Bracket

EBD(Electronic Brake-force Distribution) Description and operation
Description The EBD system (Electronic Brake force Distribution) as a sub-system of the ABS system is to control the effective adhesion utilization by the rear wheels. It ...

ABS Control Module Repair procedures
Removal [LHD] 1. Turn the ignition switch OFF. 2. Pull up the lock of the HECU connector (A), and then disconnect the connector. ...
