Kia Cee'd: Features of your vehicle / Windows

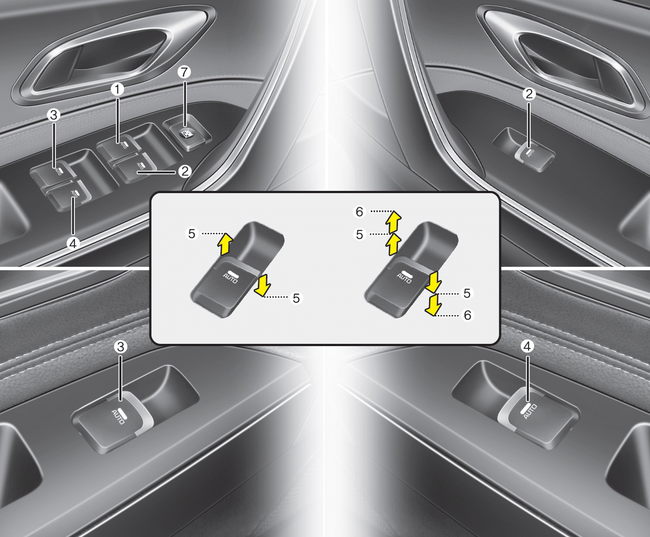

(1) Driver’s door power window switch
(2) Front passenger’s door power window
switch
(3) Rear door (left) power window
switch* (for 5 Door and wagon)
(4) Rear door (right) power window
switch* (for 5 Door and wagon)
(5) Window opening and closing
(6) Automatic power window up*/down*
(7) Power window lock switch*
*: if equipped
✽ NOTICE
In cold and wet climates, power windows may not work properly due to freezing conditions.
