Kia Cee'd: AUX Mode / Using AUX Mode
Press the
key Select [AUX]
An external device can be connected to play music.

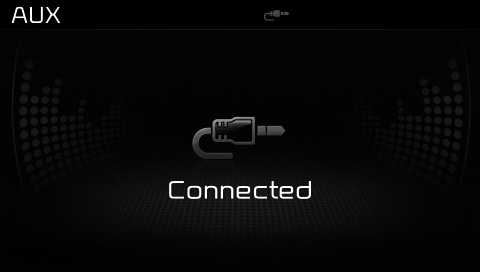

AUX Mode
...
Connecting an External Device
External audio players (Camcorders,
car VCR, etc.) can be played through
a dedicated cable.
✽ NOTICE
If an external device connector is
connected with the AUX terminal,
then AUX mode ...
