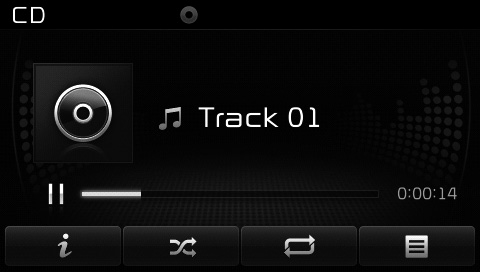

Playing/Pausing CD Tracks
Once an audio CD is inserted, the mode will automatically start and begin playing.
While playing, press the button
to
pause and press
button to play.
✽ NOTICE
Changing Tracks
Press the key to move to
the previous or next track.
✽ NOTICE

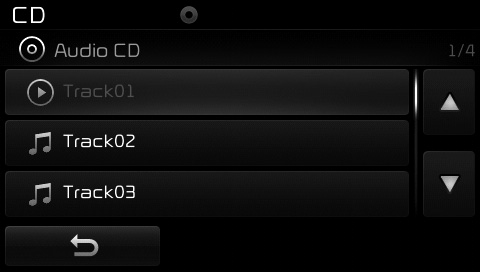

Selecting from the List
Turn the TUNE knob left/right to
search for the desired track.
Once you find the desired track, press
the TUNE knob to start playing.
Rewinding / Fast-forwarding Tracks
While playing, press and hold the
key (over 0.8 seconds) to
rewind or fast-forward the current
track.
Scan
Press the key to play the first
10 seconds of each file.
Press the key again to turn
off.
