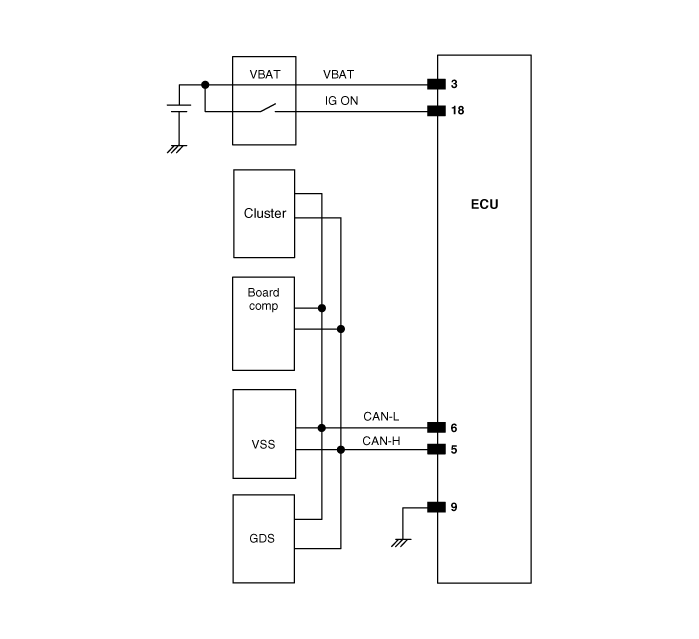

| Circuit Diagram |

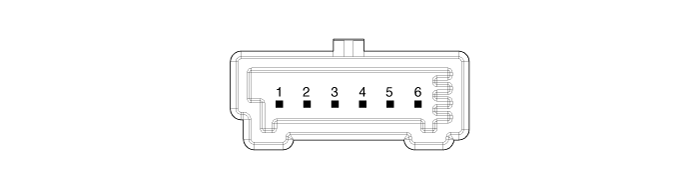

| Hamess Connector |

|
Pin No. |
Discription |
|
1 |
Battery ECU |
|
2 |
Ignition ON |
|
3 |
CAN_HIGH |
|
4 |
CAN_LOW |
|
5 |
Ground |
|
6 |
ㅡ |
