Kia Cee'd: Gauges / Tachometer

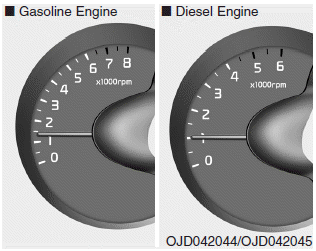

The tachometer indicates the engine speed in revolutions per minute (rpm).
Use the tachometer to select the correct shift points and to prevent lugging and/or over-revving the engine.
CAUTION
Do not operate the engine within the tachometer's RED ZONE. This may cause severe engine damage.
Speedometer
The speedometer indicates the vehicle
speed.
The speedometer is calibrated in kilometers
per hour and/or miles per hour. ...
Fuel gauge
The fuel gauge indicates the approximate
amount of fuel remaining in the fuel
tank.
✽ NOTICE
The fuel tank capacity is given in
chapter 8.
The fuel gauge is supplemented by a
low ...
