Kia Cee'd: Audio System / Steering wheel audio controls

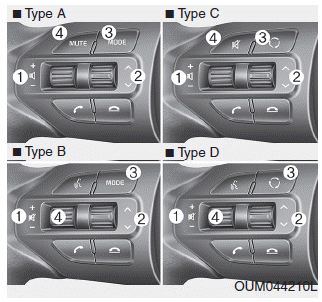

The steering wheel may incorporate audio control buttons.
CAUTION
Do not operate audio remote control buttons simultaneously.
VOLUME (+/-) (1)
- Press the lever upward (+) to increase the volume.
- Press the lever downward (-) to decrease the volume.
SEEK/PRESET (
/
)
(2)
The SEEK/PRESET lever has different functions based on the system mode. For the following functions the lever should be pressed for 0.8 seconds or more.
RADIO mode
It will function as the AUTO SEEK select button.
CD/USB/ iPod® mode
It will function as the FF/REW button. If the SEEK/PRESET button is pressed for less than 0.8 seconds, it will work as follows in each mode.
RADIO mode
It will function as the PRESET STATION buttons.
CD/USB/ iPod® mode
It will function as TRACK UP/DOWN button.
MODE (
) (3)
Press the button to change audio source.
FM ➟ AM ➟ CD ➟ USB/iPod® ➟ AUX ➟ MY MUSIC ➟ Bluetooth® Wireless Technology audio
MUTE (
) (4, if equipped)
- Press the button to mute the sound.
- Press the button to turn off the microphone during a telephone call.
Detailed information for audio control buttons are described in the following pages in this section.
