Kia Cee'd: Body Control Module (BCM) / Schematic diagrams
Kia Cee'd JD Service Manual / Body Electrical System / Body Control Module (BCM) / Schematic diagrams

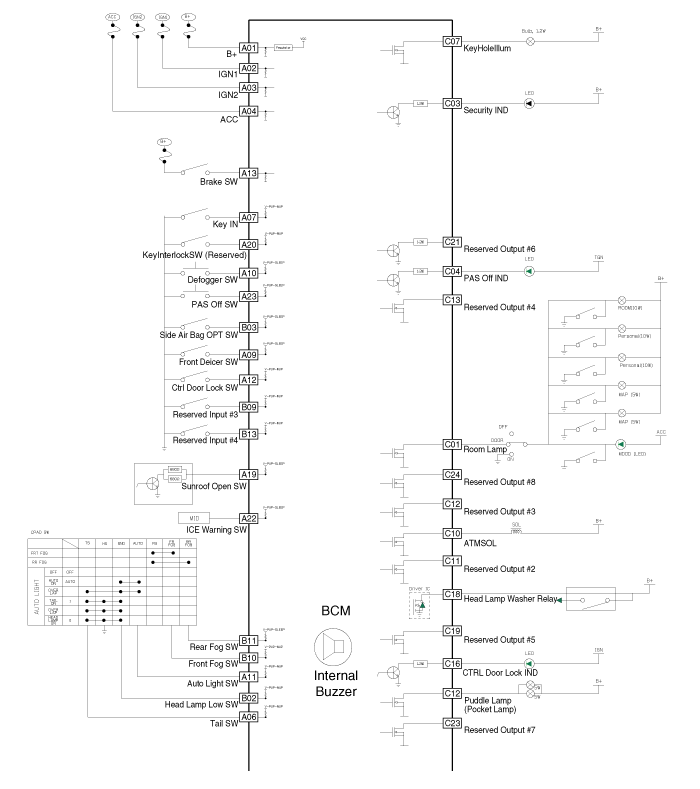

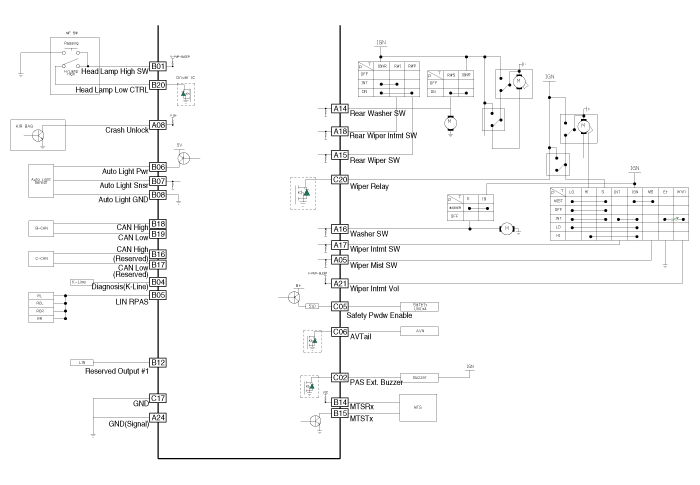

| Circuit Diagram |
Components and components location
Components
※ Internal Buzzer : Parking assist system buzzer
Pin Arrangement
No.
Connector A
Connector B
...
Description and operation
Description
CAN Communication Netrwork
Function
Function
Description
Front Washer & Wiper
– ...
