Kia Cee'd: Fuses and Relays / Relay Box (Passenger Compartment) Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Fuses and Relays / Relay Box (Passenger Compartment) Components and components location

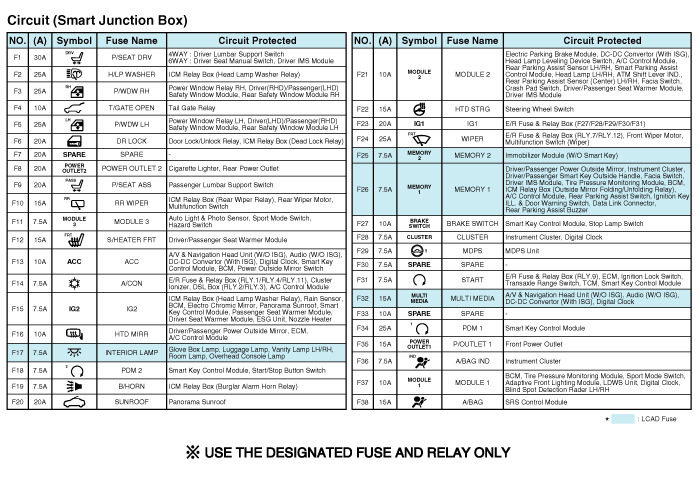

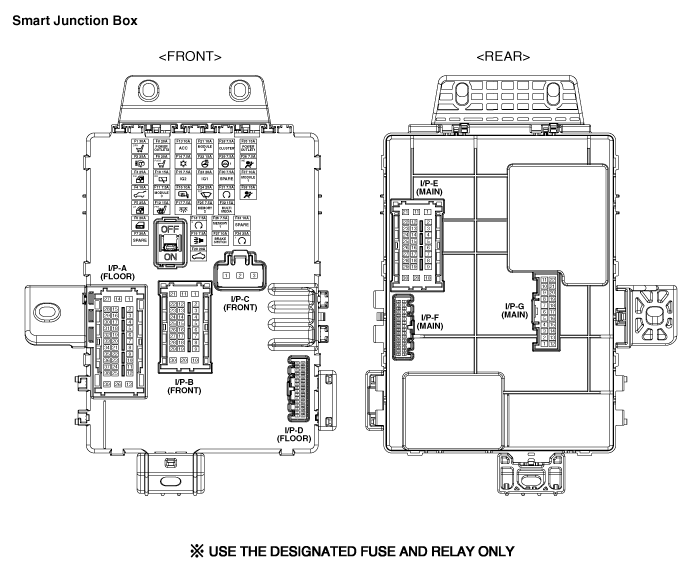

Components

Relay Box (Engine Compartment) Repair procedures
Inspection Power Relay Test (Type A)    – Do not use pliers. ...

Relay Box (Passenger Compartment) Description and operation
Description Smart Junction Box(SJB) 1. General function : Interior Junction Box + some functions of BCM It controls loads with CAN communication and IP ...
