Never use the Smart Parking Assist System in the below conditions.
WARNING
Do not use the Smart Parking Assist System in the following conditions for unexpected results may occur and cause a serious accident.

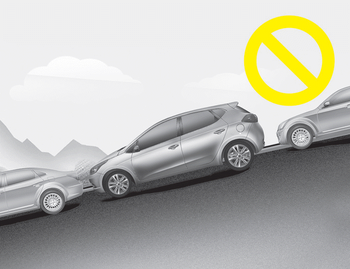

1. Parking on inclines
The driver must apply the accelerator and brake pedal when parking on inclines. If the driver is unfamiliar with applying the accelerator and brake pedal, a car accident may occur.

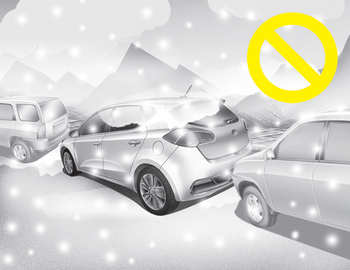

2. Parking in snow
Snow may interfere with sensor operation or the system may cancel if the road is slippery while parking. Also, if the driver is unfamiliar with applying the accelerator and brake pedal, a car accident may occur.

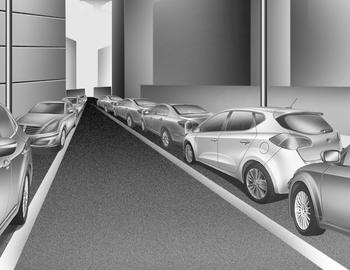

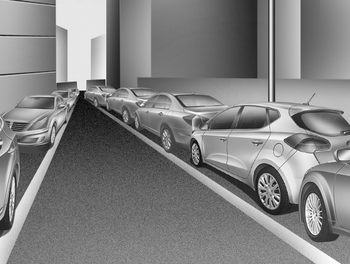

3. Parking in narrow space
The system may not search for parking spaces if the space is too narrow. Even if it operates always be careful.

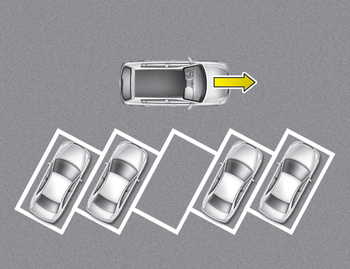

4. Parking diagonal
The system is a supplemental for parallel parking. Diagonal line parking is not available. Even if the vehicle is able to enter the space, do not operate the Smart Parking Assist System. The system will attempt parallel parking.

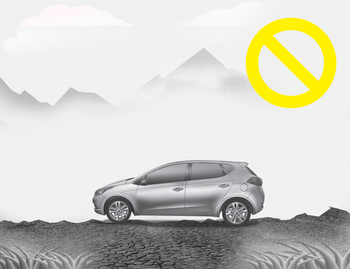

5. Parking in uneven road
Parking in uneven roads, the driver needs to properly apply the pedal (clutch, accelerator or brake). If not, the system may cancel when the vehicle slips or an accident may occur.

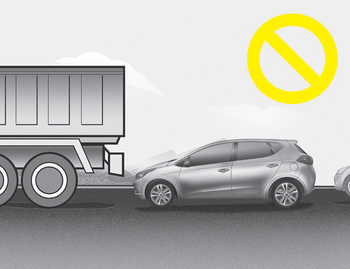

6. Parking behind a truck
An accident may occur when parking behind a vehicle higher than yours. For example, bus, truck, etc.

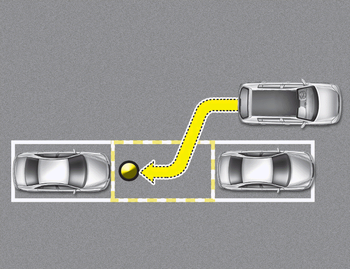

7. Obstacle in parking space
The system may search for a parking space even though an obstacle is in the parking space. An accident may occur if you continue to park the vehicle with the system.
Do not solely rely on the Smart Parking Assist System.
8. Leaving a parking space near a wall
When leaving a parking space that is narrow and near a wall, the system may not work properly. When leaving a parking space similar to the above picture, the driver must watch out for obstacles while leaving.
