Kia Cee'd: Storage compartment / Luggage tray (wagon)

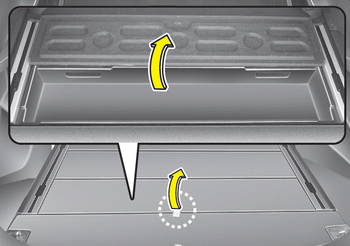

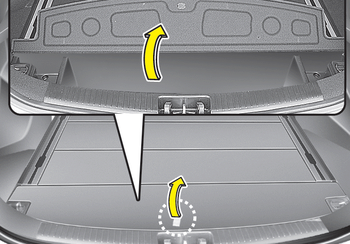

You can place a first aid kit, a reflector triangle (front tray), tools, etc. in the box for easy access.
Grasp the handle on the top of the cover and lift it.
Sunglass holder
To open the sunglass holder, press the
cover and the holder will slowly open.
Place your sunglasses in the compartment
door with the lenses facing out.
Push to close.
WARNING
Do not kee ...
Luggage side tray
■ 3 Door and 5 Door
■ Wagon
The luggage side tray can be used for
storing small items.
To open the cover, pull up the handle and
lift the cover. ...
