Kia Cee'd: Engine Control System / Intake Air Temperature Sensor (IATS) Schematic diagrams

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Intake Air Temperature Sensor (IATS) Schematic diagrams

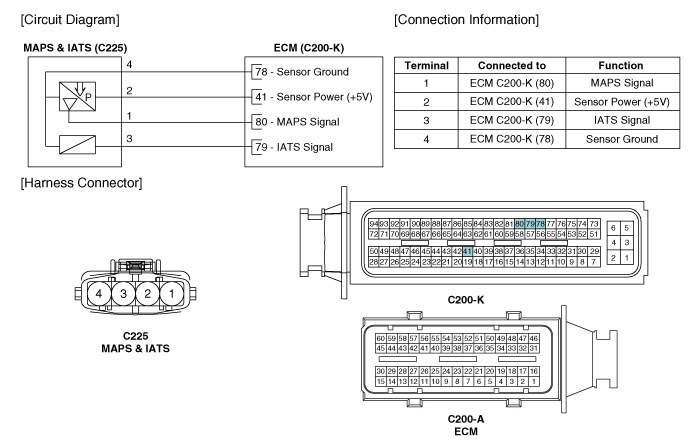

Circuit Diagram

Intake Air Temperature Sensor (IATS) Specifications
Specification   Temperature Resistance (kΩ) °C °F -40 -40 40.93 ~ 48.35 ...

Intake Air Temperature Sensor (IATS) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the IATS connector. 3. Measure resistance betwe ...
