Kia Cee'd: Indicators and Gauges / Instrument Cluster Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Indicators and Gauges / Instrument Cluster Components and components location

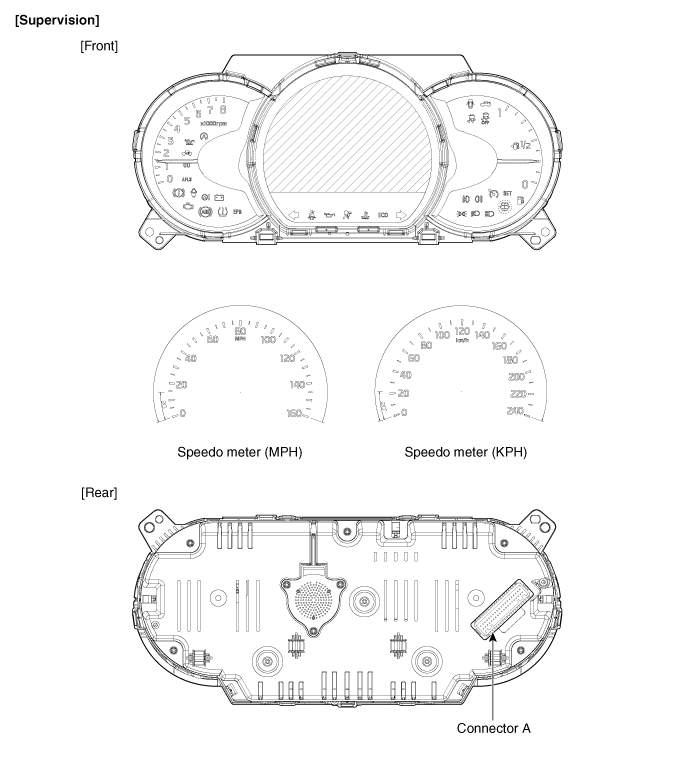

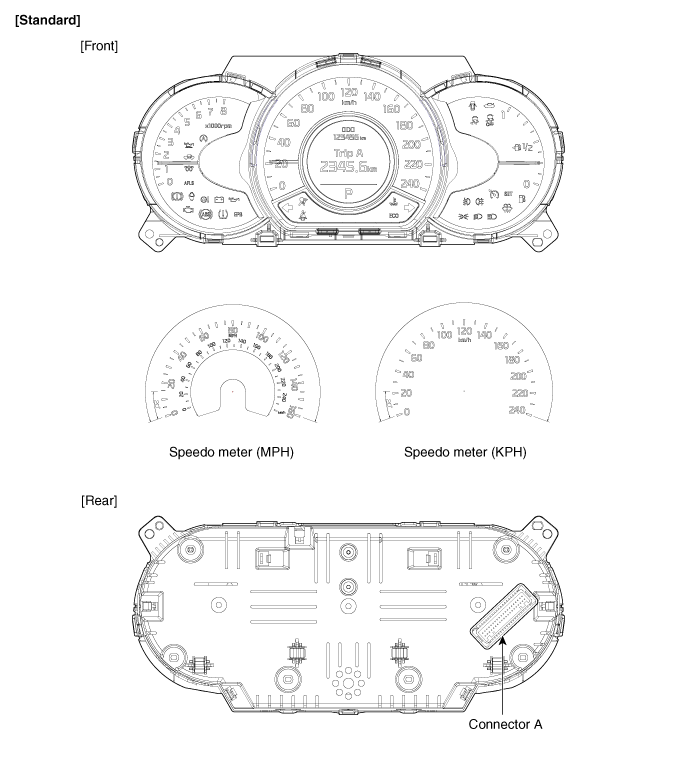

Components

Troubleshooting
Troubleshooting   Symptom Possible cause Remedy Tachometer does not operate Memory2 fuse (10A) blown C ...

Instrument Cluster Schematic diagrams

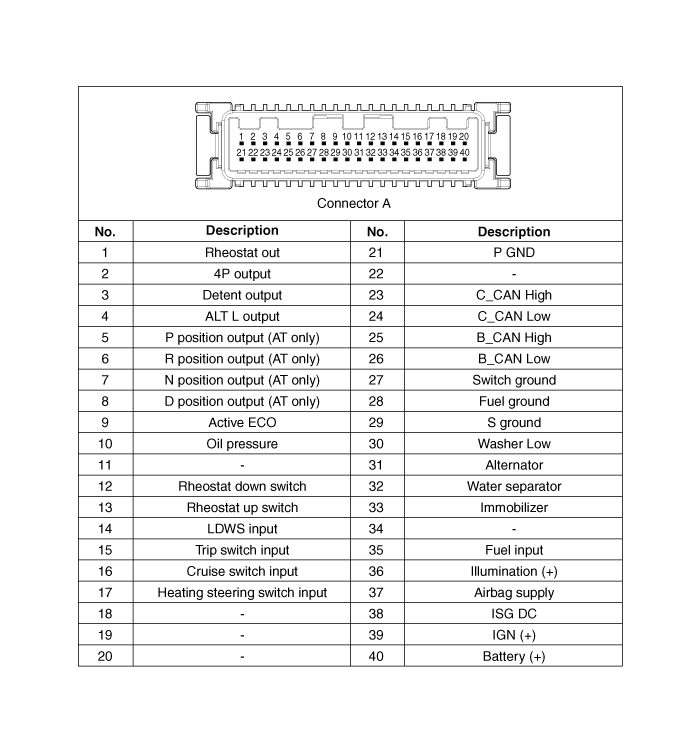

Circuit Diagram [Standard] [Supervision] ...
