Kia Cee'd: Engine Control System / Injector Schematic diagrams

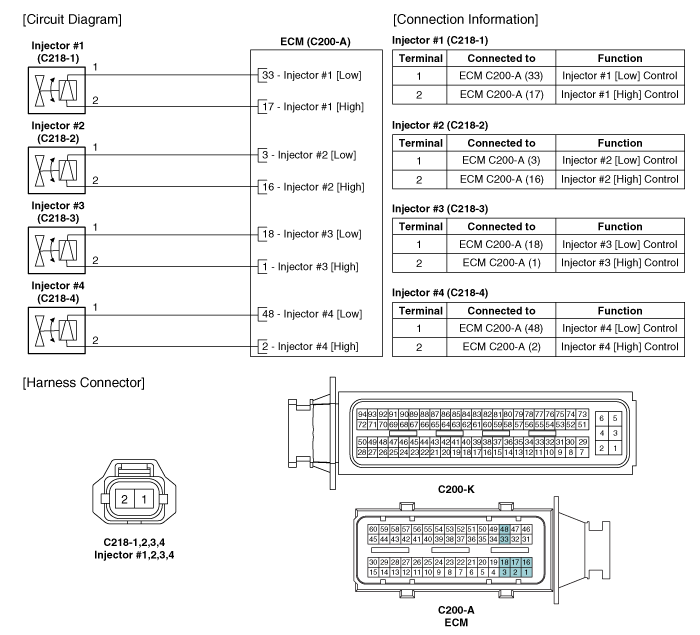

| Circuit Diagram |
Injector Troubleshooting
Signal Waveform
The three waveforms below are taken from the #1 and #4 injectors. The top waveform
is from the high side (feed side) of the #1 and #4 injectors, while the middle
...
Injector Repair procedures
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the injector connector.
3.
Measure resistance b ...
