Kia Cee'd: Engine start/stop button / Illuminated engine start/stop button

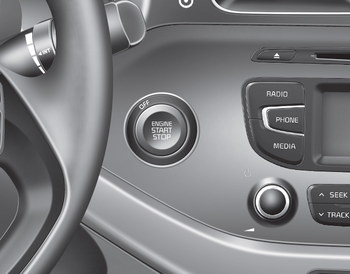

Whenever the front door is opened, the engine start/stop button will illuminate for your convenience. The light will go off after about 30 seconds when the door is closed. It will also go off immediately when the theft-alarm system is armed.
