Kia Cee'd: Ignition System / Ignition Coil Schematic diagrams

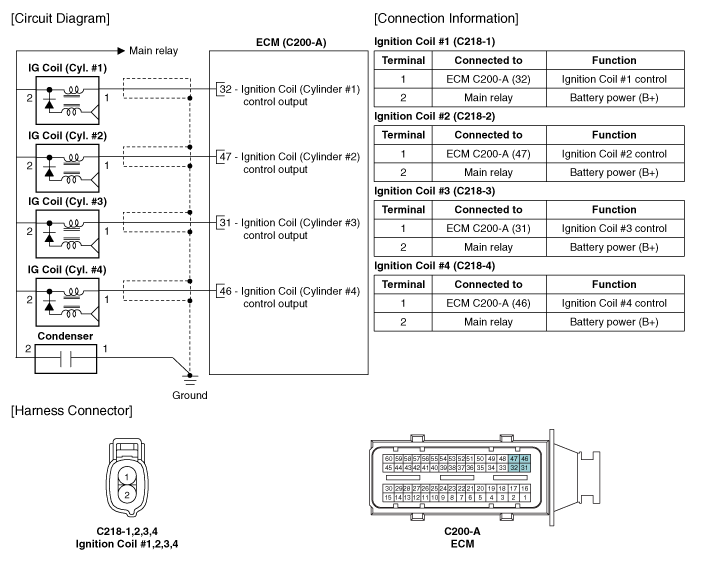

Circuit Diagram

Ignition Coil Specifications
Specification   Item Specification Primary Coil Resistance (Ω) 0.75 ± 15% [20°C (68°F)] Secondary Coi ...

Ignition Coil Repair procedures
Removal 1. Disconnect the battery nagative terminal. 2. Remove the engine cover. 3. Disconnect the igniti ...
