Kia Cee'd: Steering wheel / Heated Steering wheel Schematic diagrams

Kia Cee'd JD Service Manual / Steering System / Steering wheel / Heated Steering wheel Schematic diagrams

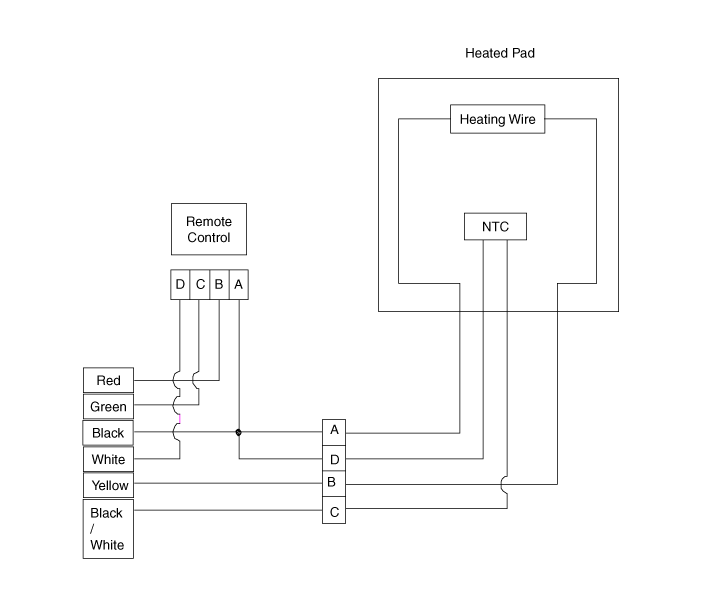

System Circuit Diagram

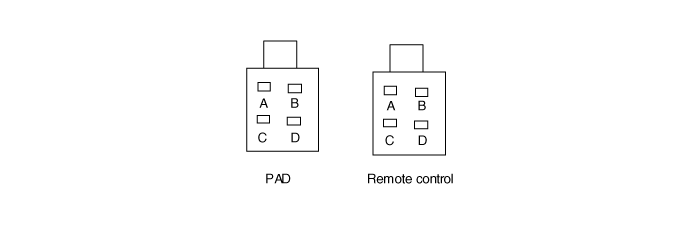

Terminal Function

Housing
Pin
Function
Wire color
Pad
A
GND
Back
B
HEATER
Yellow
C
NTC+
Back / Yellow
D
NTC-
Back
Remote
control
A
GND
Back
B
BAT
Red
C
LED
Green
D
SWITCH
White

Heated Steering wheel Description and operation
Description "The heated steering wheel features an internal heating element that maintains the steering wheel temperature to a consistent level during cold seasons. A heater ...

Heated Steering wheel Repair procedures
Inpection 1. Measure a resistance of NTC and Heated pad. – NTC resistance(Black / Yellow, Black) - 10.0 kΩ ± 10% (25°C) ...
