Kia Cee'd: Engine Control System / Heated Oxygen Sensor (HO2S) Schematic diagrams

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) Schematic diagrams

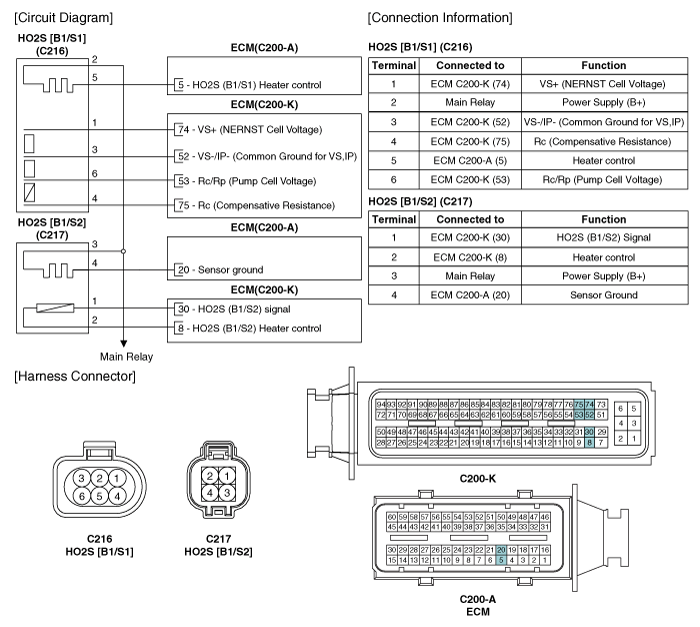

Circuit Diagram

Heated Oxygen Sensor (HO2S) Troubleshooting
Signal Waveform ...

Heated Oxygen Sensor (HO2S) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3. Measure resistance betwe ...
