Kia Cee'd: Engine Control System / ETC (Electronic Throttle Control) System Schematic diagrams

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / ETC (Electronic Throttle Control) System Schematic diagrams

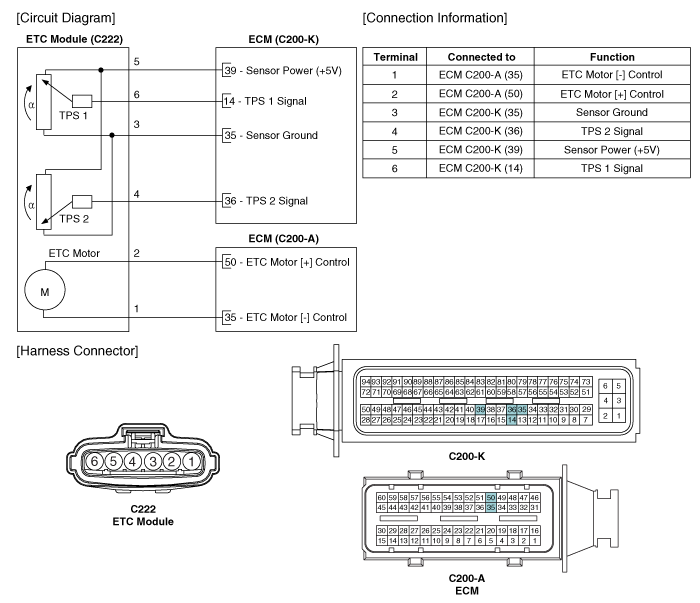

Circuit Diagram

ETC (Electronic Throttle Control) System Specifications
Specification [Throttle Position Sensor (TPS)]   Throttle angle(°) Output Voltage (V) [Vref=5V] TPS1 TPS2 ...

ETC (Electronic Throttle Control) System Repair procedures
Inspection Throttle Position Sensor (TPS) 1. Connect the GDS on the Data Link Connector (DLC). 2. Start the engine and measure the o ...
