Kia Cee'd: Rear Glass Defogger / Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Rear Glass Defogger / Components and components location

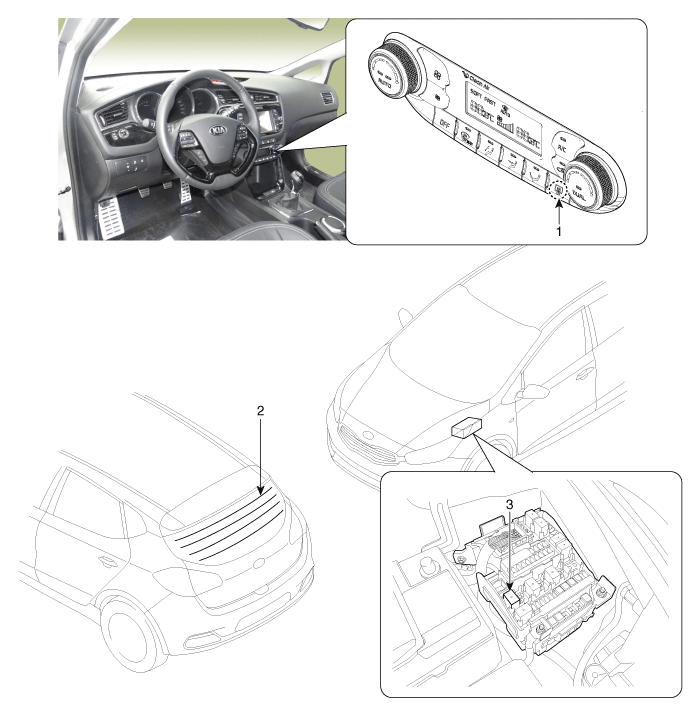

| Component Location |
| 1. Rear glass defogger switch
(A/C controller) 2. Rear glass defogger |
3. Rear glass defogger relay
|
