Components (1)

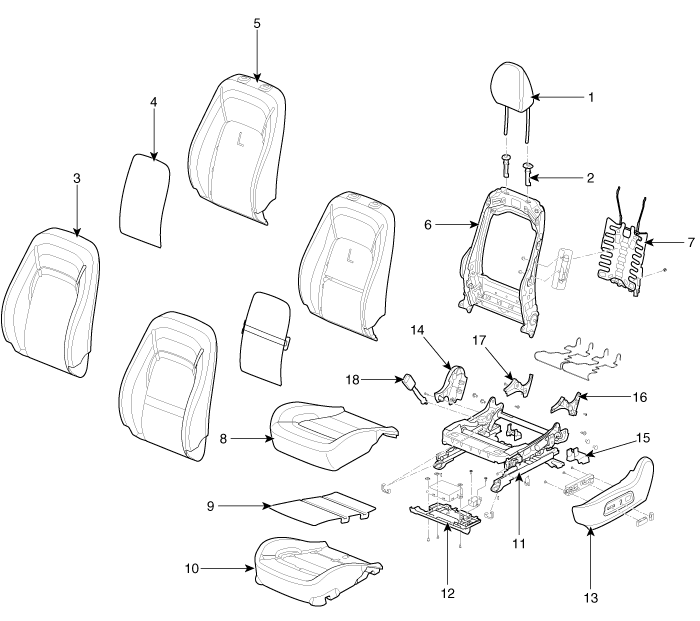

[5Door]

1. Front seat headrest
2. Front seat headrest guide
3. Front seat back cover
4. Front seat back warmer
5. Front seat back pad
6. Front seat back frame
7. Front seat lumber support
8. Front seat cushion cover
9. Front seat cushion warmer

10. Front seat cushion pad
11. Front seat cushion frame
12. Front extension front cover
13. Front seat shield outer cover
14. Front seat shield inner cover
15. Foot mounting cover
16. Front inside cover [LH]
17. Front inside cover [RH]
18. Front seat belt buckle

Components (2)

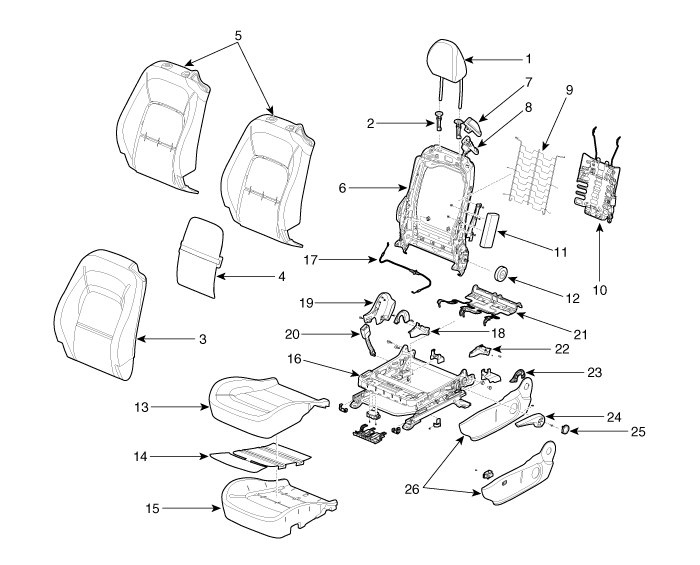

[3Door]

1. Front seat headrest
2. Front seat headrest guide
3. Front seat back cover
4. Front seat back warmer
5. Front seat back pad
6. Front seat back frame
7. Release handle upper assembly
8. Lever cable assembly
9. Suspension mat
10. Front seat power lumber support
11. Side airbag
12. Handwheel recliner
13. Front seat cushion cover

14. Front seat cushion warmer
15. Front seat cushion pad
16. Front seat cushion frame
17. Track bowden cable
18. Front inner cover [RH]
19. Front seat shield inner cover
20. Front seat belt buckle
21. FSC overmolded cushion mat
22. Front inner cover [LH]
23. Front outer recliner cover
24. Height adjust lever
25. Height adjust lever cap
26. Front seat shield outer cover
