Kia Cee'd: Rear Suspension System / Components and components location

Kia Cee'd JD Service Manual / Suspension System / Rear Suspension System / Components and components location

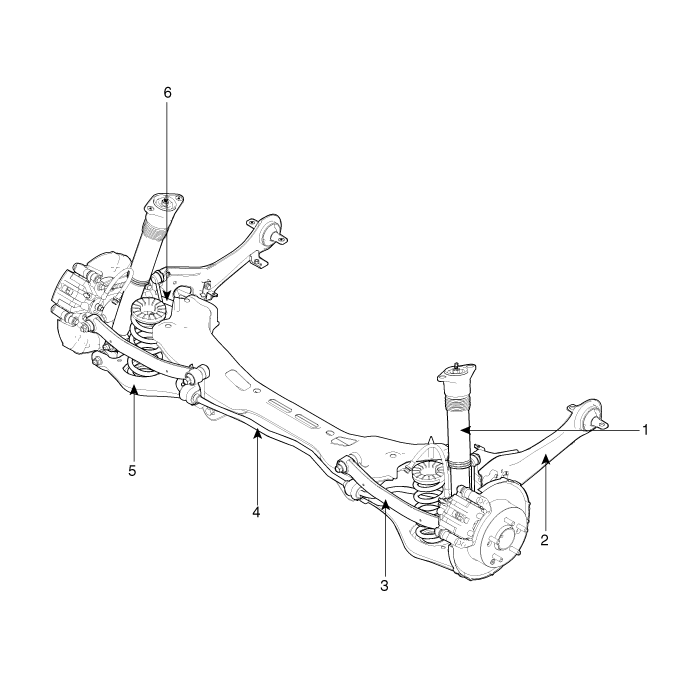

Components Location


1. Rear shock absorber
2. Rear trailing arm
3. Rear upper arm
4. Rear stabilizer bar
5. Rear lower arm
6. Rear assist arm

Rear Suspension System
...

Rear Shock Absorber Components and components location
Components   1. Rear insulator cover 2. Locking nut 3. Plpe 4. Rear bracket assembly 5. Bumper rubber 6. Protector 7. Rear shock absorber as ...
