Kia Cee'd: Ignition Lock Switch / Clutch Pedal Components and components location

Kia Cee'd JD Service Manual / Clutch System / Ignition Lock Switch / Clutch Pedal Components and components location

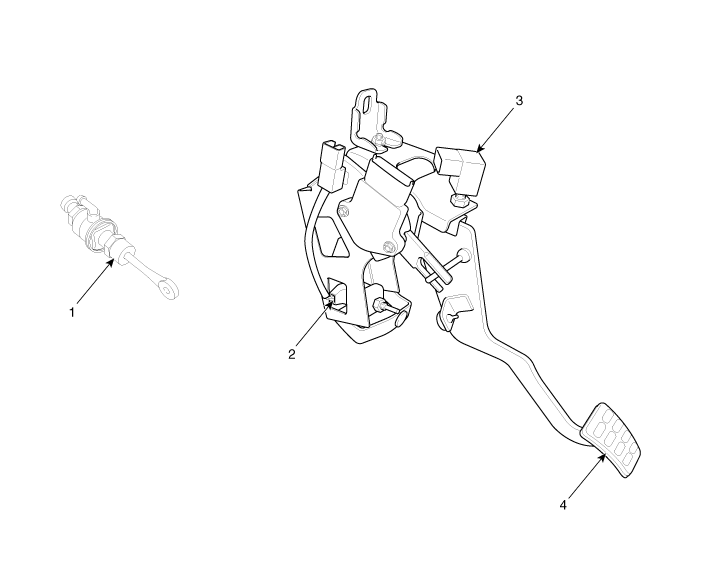

Components

1. Master cylinder
2. Ignition lock switch

3. Clutch switch
4. Pedal pad

Repair procedures

Inspection Signal Circuit Inspection 1. Check ignition lock switch pull-up voltage (1) IG KEY "OFF", ENGINE "OFF&q ...

Clutch Pedal Repair procedures

Removal 1. Remove the battery and battery tray. G 1.6 MPI (Refer to Engine Electrical System - "Battery") G 1.4 MPI (Refer to Engine Electr ...
