Kia Cee'd: Dual Clutch Transmission Control System / Clutch Actuator Motor 1 (Odd Gear) Schematic diagrams

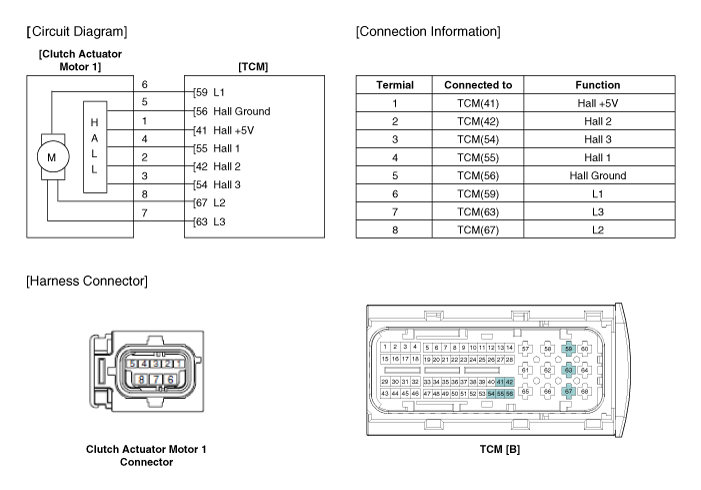

Schematic Diagrams

Clutch Actuator Motor 1 (Odd Gear) Specifications
Specification Clutch Actuator Motor 1 (Odd Gear) ▷ Specification   Item  Specifications Operating condition (°C) °F ...

Clutch Actuator Motor 1 (Odd Gear) Repair procedures
Inspection 1. Turn off the ignition switch. 2. Disconnect the clutch motor connector (A). 3. Meas ...
