Kia Cee'd: Using a child restraint system / Child Seat Restraint Suitability for Seat Position using the Seat Belt - For Europe

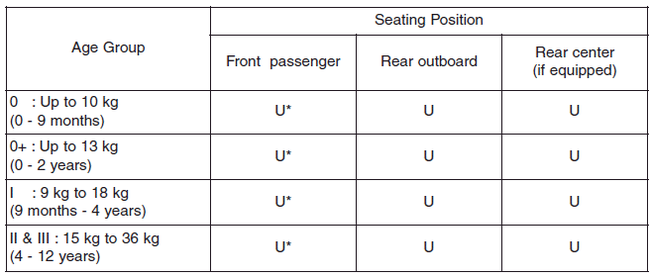

Use child safety seats that have been officially approved and are appropriate for your children. When using the child safety seats, refer to the following table.
U : Suitable for "universal" category restraints approved for use in this mass group
U* : Suitable for "universal" category restraints approved for use just in the condition of non-height adjustable seat or the highest position of height adjustable seat.
WARNING
We recommend that a child restraint seat be installed in the rear seat, even if the front passenger's air bag ON/OFF switch is set to the OFF position. To ensure the safety of your child, the front passenger’s air bag must be deactivated when it should be necessary to install a child restraint seat on the front passenger seat in exceptional circumstances.
Installing a child restraint system by
lap/shoulder belt
To install a child restraint system on the
outboard or center rear seats, do the following:
1. Place the child restraint system in the
seat and route the lap/shoulder belt
around or through t ...
Securing a child restraint seat with
“Tether Anchor” system
■ 3 Door and 5 Door
■ Wagon
Child restraint hook holders are located
on the transverse trim behind the rear
seats (3 Door and 5 Door) or the floor
behind the rear seats (Wagon).
Thi ...
