Kia Cee'd: Cylinder Head Assembly / Camshaft Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Cylinder Head Assembly / Camshaft Components and components location

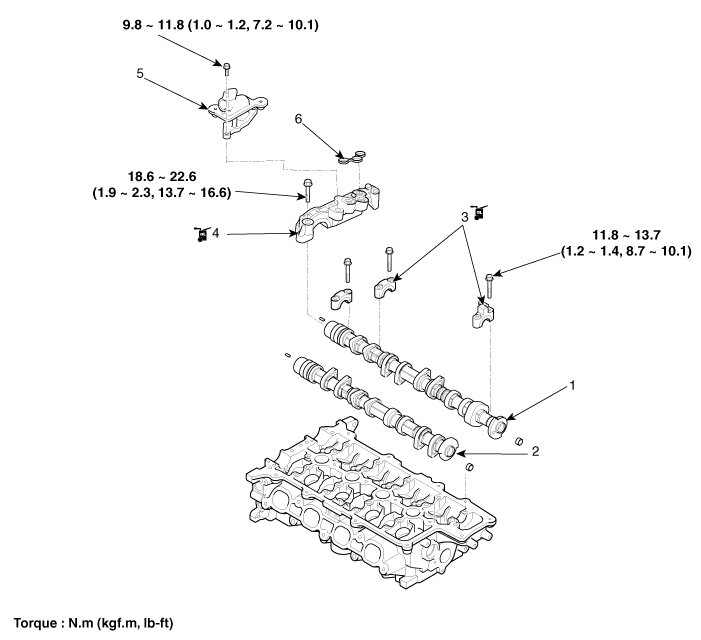

Components


1. Exhaust camshaft
2. Intake camshaft
3. Camshaft bearing cap
4. Camshaft front bearing cap
5. OCV (Oil Control Valve) adapter
6. O-ring B
7. O-ring A

CVVT & Camshaft Repair procedures
Removal 1. Remove the cylinder head cover. (Refer to Cylinder Head Assembly - "Cylinder Head Cover") 2. Turn the cran ...

Camshaft Repair procedures
Removal 1. Remove the cylinder head cover. (Refer to Cylinder Head Assembly - "Cylinder Head Cover") 2. Remove the ti ...
