Kia Cee'd: Automatic transaxle shift position indicator / Automatic Transaxle Shift Indicator in sports mode

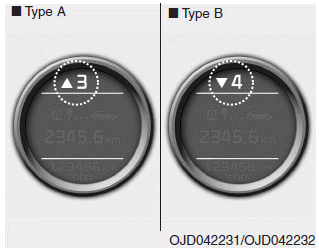

In the Sports Mode, this indicator informs which gear is desired while driving to save fuel.
For example
: Indicates that shifting up to
the 3rd
gear is desired (currently the shift
lever is in the 2nd or 1st gear).
: Indicates that shifting down to
the 3rd
gear is desired (currently the shift
lever is in the 4th, 5th, or 6th gear).
When the system is not working properly, the indicator is not displayed.
