Kia Cee'd: Cruise Control system / To cancel cruise control, do one of the following
- Depress the brake pedal.
- Depress the clutch pedal if equipped with a manual transaxle.
- Shift into N (Neutral) if equipped with an automatic transaxle.

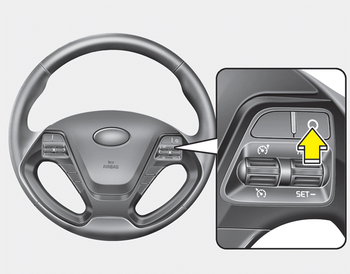

- Press the O (Cancel) button located on the steering wheel.
- Decrease the vehicle speed lower than the memory speed by 20 km/h (12 mph).
- Decrease the vehicle speed to less than approximately 30 km/h (20 mph).
Each of these actions will cancel cruise control operation (the cruise set indicator light will go off), but it will not turn the system off. If you wish to resume cruise control operation, move up the lever (to RES+) located on your steering wheel. You will return to your previously preset speed.
To temporarily accelerate with the
cruise control on
If you want to speed up temporarily when
the cruise control is on, depress the
accelerator pedal. Increased speed will
not interfere with cruise control operation
or change the set speed.
To ...
To resume cruising speed at
more than approximately 30 km/h
(20 mph)
If any method other than the
button
was used to cancel cruising speed and
the system is still activated, the most
recent set speed will automatically
resume when the +RES switch is
push ...
