Special Service Tools

Tool Name / Number	Illustration	Description
Engine support fixture (bar) 09200-3N000		Used for holding engine assembly when removing / installing transaxle Used with the supporter (09200-2S000)
Engine support fixture (supporter) A: 09200-2S000 B: 09200-2S100 C: 09200-2S200		Used for holding engine assembly when removing / installing transaxle Used with the bar (09200-3N000)
Engine support fixture (adapter) 09200-4X000		Used for holding engine assembly when removing / installing transaxle Used with the bar (09200-3N000) and supporter (09200-2S000)
Oil seal installer 09453-2F300		Used for installing differential oil seal
Inhibitor switch guide pin 09480-A3800		Used for fixing "N" range when installing inhibitor switch

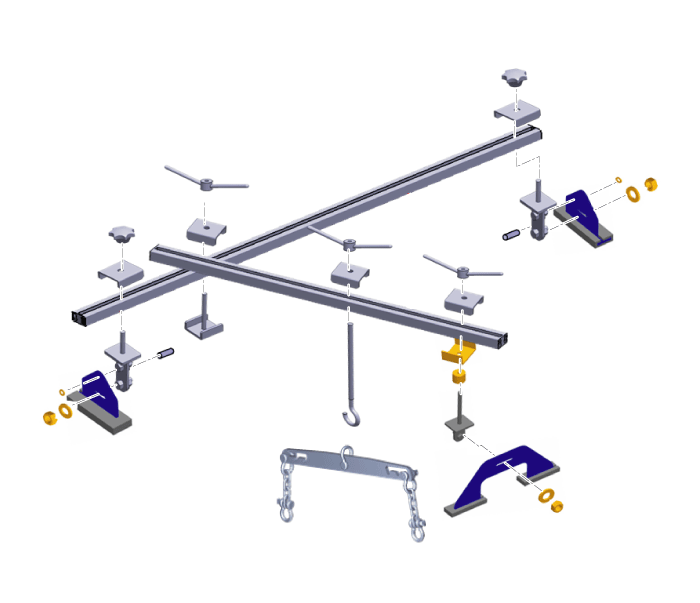

Engine support fixture assembly drawing
