Kia Cee'd: Immobilizer System / Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / Immobilizer System / Schematic diagrams

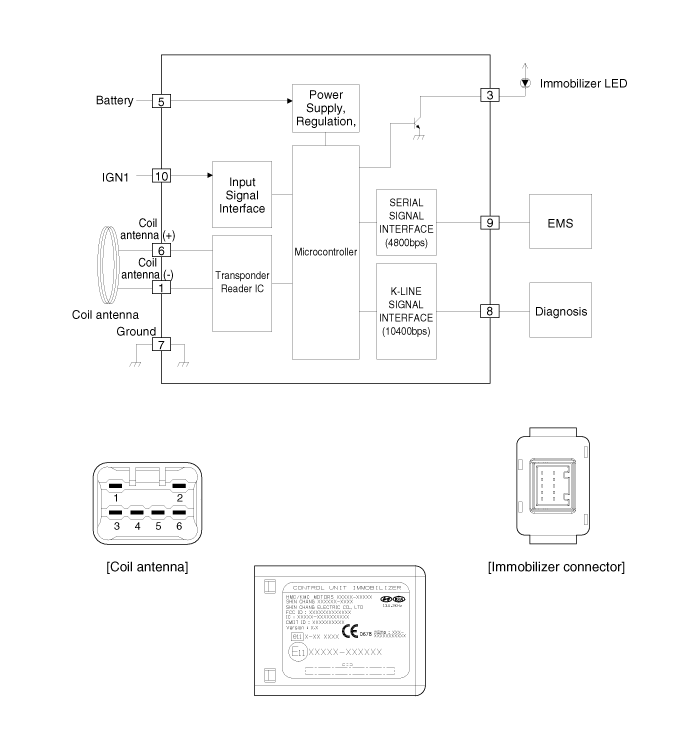

Circuit Diaram

Description and operation

Description The immobilizer system will disable the vehicle unless the proper ignition key is used, in addition to the currently available anti-theft systems such as car alarms, ...
