Kia Cee'd: ABS(Anti-Lock Brake System) / Rear Wheel Speed Sensor Components and components location

Kia Cee'd JD Service Manual / Brake System / ABS(Anti-Lock Brake System) / Rear Wheel Speed Sensor Components and components location

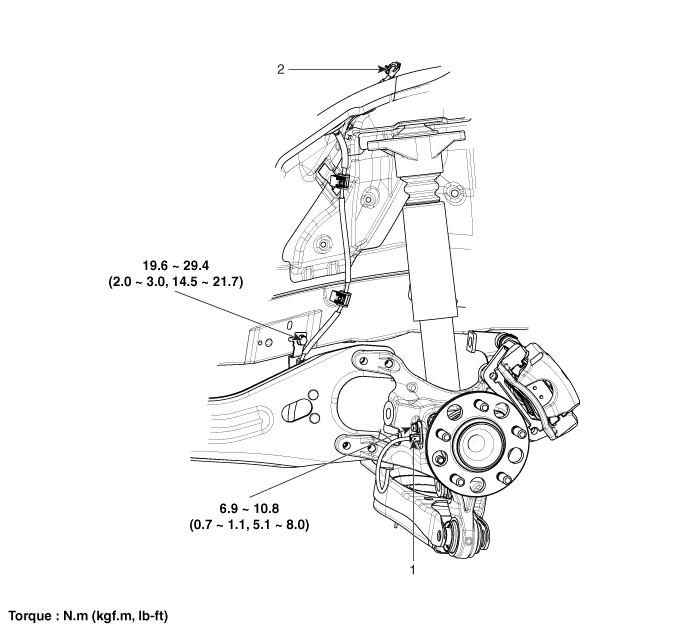

Components


1. Rear wheel speed sensor
2. Rear wheel speed sensor connector

Front Wheel Speed Sensor Repair procedures
Removal 1. Remove the front wheel and tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) ...

Rear Wheel Speed Sensor Repair procedures
Removal 1. Remove the rear wheel and tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) ...
