Kia Cee'd: Interior Trim / Rear Pillar Trim Repair procedures
| • |
Put on gloves to protect your hands.
|
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the rear wheel house trim.
(Refer to Interior Trim - "Rear Wheel House Trim")
|
| 2. |

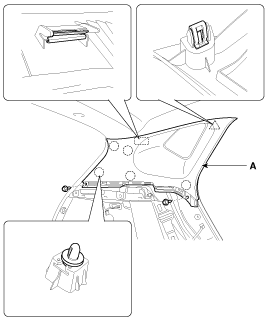

After loosening the mounting bolts, then remove the rear pillar trim
(A).
|
| 3. |
Install in the reverse order of removal.
| •
|
Replace any damaged clips.
|
|
|
[3Door]
| • |
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
| • |
Put on gloves to protect your hands.
|
|
| 1. |
Remove the rear inner outer trim.
(Refer to Interior Trim - "Center Pillar Trim")
|
| 2. |
After loosening the mounting bolts, then remove the rear pillar trim
(A).
|
| 3. |
Install in the reverse order of removal.
| •
|
Replace any damaged clips.
|
|
|
Component Location
[5Door]
1. Rear pillar trim
[3Door]
1. Rear pillar trim
...
