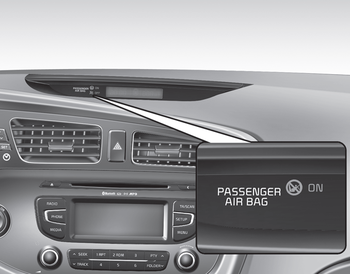

Kia Cee'd: Air bag warning and indicator / Passenger’s front air bag ON indicator
The passenger's front air bag ON indicator illuminates for approximately 4 seconds after the ignition switch is turned to the ON position.
The passenger's front air bag ON indicator also comes on when the passenger's front air bag ON/OFF switch is set to the ON position and goes off after approximately 60 seconds.
