Kia Cee'd: Interior light bulb replacement / Map lamp, vanity mirror lamp, room lamp, luggage room lamp and glove box lamp

Kia Cee'd JD Owners Manual / Maintenance / Light bulbs / Interior light bulb replacement / Map lamp, vanity mirror lamp, room lamp, luggage room lamp and glove box lamp

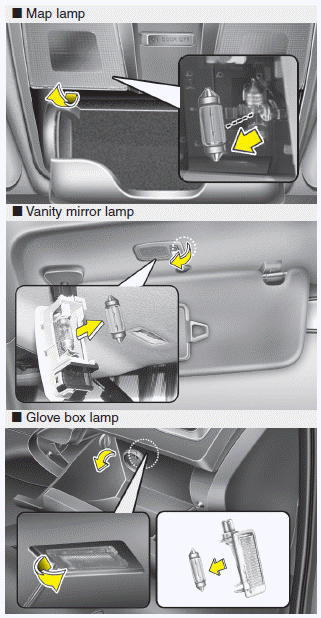

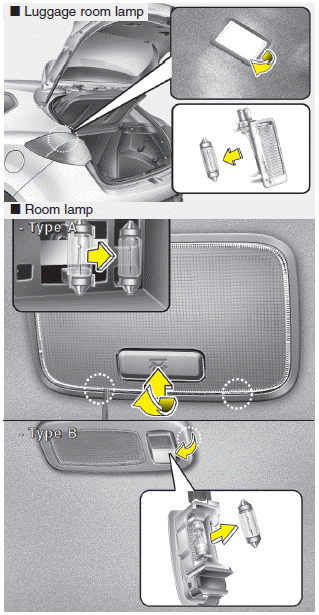

1. Using a flat-blade screwdriver, gently pry the lens from the interior light housing.

2. Remove the bulb by pulling it straight out.

WARNING

Prior to working on the interior lights, ensure that the light is off to avoid burning your fingers or receiving an electric shock.

3. Install a new bulb in the socket.

4. Align the lens tabs with the interior light housing notches and snap the lens into place.

CAUTION

Be careful not to dirt or damage lens, lens tab, and plastic housings.
