Kia Cee'd: Engine Control System / ISG (Idle Stop & Go) Components and components location

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / ISG (Idle Stop & Go) Components and components location

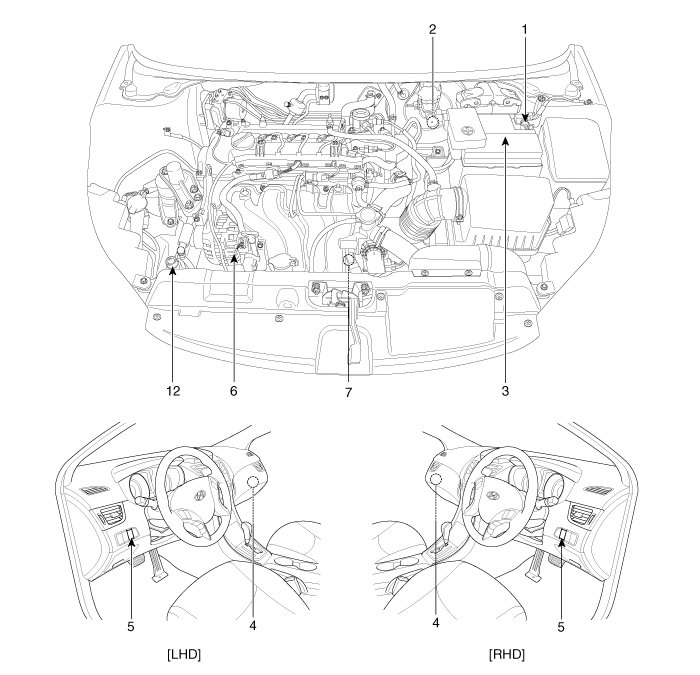

Components Location


1 . Battery sensor
2 . Brake Booster Vacuum Pressure Sensor (BBVPS)
3 . AGM battery
4 . DC DC converter
5 . ISG OFF switch
6. Alternator
7 . Starter
8. Neutral switch
9. Clutch switch
10. Door switch
11. Seat belt switch
12. Hood switch


1 . Battery sensor
3 . AGM battery
2 . Brake Booster Vacuum Pressure Sensor (BBVPS)

4 . DC DC converter
5 . ISG OFF switch

6. Alternator
7 . Starter

8. Neutral switch
9. Clutch switch

10. Door switch
11. Seat belt switch

12. Hood switch


Fuel Pressure Control Valve Repair procedures
Inspection 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the fuel pressure regulator ...

ISG (Idle Stop & Go) Description and operation
Description Idle Stop & Go (ISG) system switches off the ignition when vehicle is stopped, and then restarts the ignition and starts the vehicle when accelerator is pushed. I ...
