Kia Cee'd: Your vehicle at a glance / Instrument panel overview

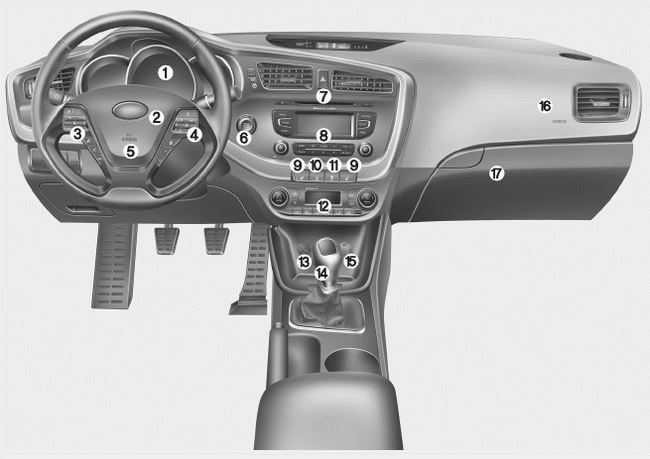

1. Instrument cluster
2. Horn
3. Steering wheel audio control
4. Cruise control switch
Speed limiter control switch
Cluster display mode conversion switch
5. Driver’s air bag
6. Ignition switch or ENGINE START/STOP button
7. Hazard warning switch
8. Audio
9. Seat warmer
10. Central door lock switch
11. ESC OFF button
12. Climate control system
13. Cigar lighter
14. Aux, USB and iPod port
15. Power outlet
16. Front passenger’s air bag
17. Glove box

Interior overview
1. Seat 2. Inside door handle 3. Power window switch 4. Power window lock button 5. Hood release lever 6. Outside rearview mirror folding 7. Outside rearview mirror control 8. Headlight level ...

Engine compartment
■ Gasoline engine (GDI) ■ Gasoline engine (MPI) 1. Engine oil filler cap 2. Brake/clutch fluid reservoir 3. Positive battery terminal 4. Negative battery terminal 5. Fuse box 6. Air cle ...
