Kia Cee'd: Steering wheel / Heated steering wheel

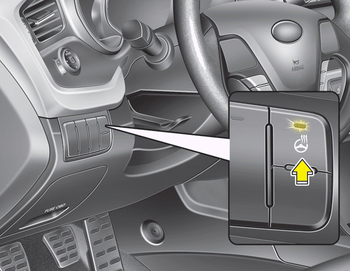

With the ignition switch in the ON position, pressing the heated steering wheel button warms the steering wheel.
✽ NOTICE
The heated steering wheel will turn off automatically approximately 30 minutes after the heated steering wheel is turned on.
■ Normal vision
■ Supervision

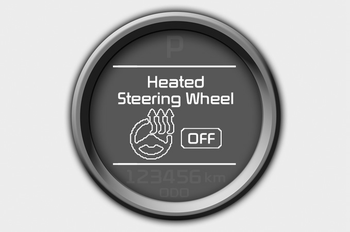

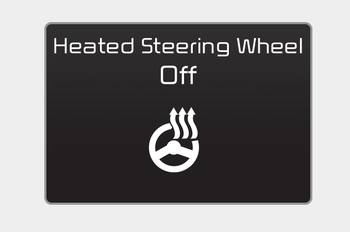

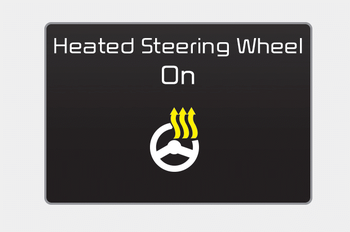

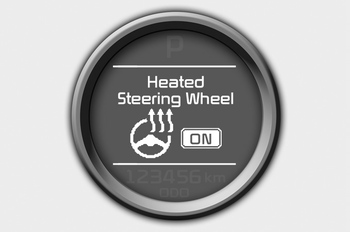

The indicator on the button will illuminate and notify you on the LCD display. To turn the heated steering wheel off, press the button once again. The indicator on the button will turn off and notify you on the LCD display.
CAUTION
Do not install any grip to operate the steering wheel. This causes damage to the heated steering wheel system.
Tilt and telescopic steering
A tilt and telescopic steering wheel
allows you to adjust the steering wheel
before you drive. You can also raise it to
give your legs more room when you exit
and enter the vehicle.
The steer ...
Horn
To sound the horn, press the horn symbol
on your steering wheel.
Check the horn regularly to be sure it
operates properly.
✽ NOTICE
To sound the horn, press the area indicated
by the horn ...
Other information:
Kia Cee'd JD Service Manual: Heated Steering wheel Schematic diagrams
System Circuit Diagram
Terminal Function
Housing
Pin
Function
Wire color
Pad
A
GND
Back
B
HEATER
Yellow
...
Kia Cee'd JD Owners Manual: Steering wheel audio controls
The steering wheel may incorporate
audio control buttons.
CAUTION
Do not operate audio remote
control buttons simultaneously.
VOLUME (+/-) (1)
Press the lever upward (+) to
increase the volume.
Press the lever downward (-) to
decrease the volume.
SEEK/PRESET (/)
(2)
The SE ...
