Kia Cee'd: Front light replacement / Headlight (High, 1) and static bending light (2)

Front light replacement

(1) Front turn signal light (2) Headlight (Low) (3) Static bending light (if equipped) (4) Position light (5) Position light / Daytime running light (DRL, LED Type) (if equipped) (6) Headligh ...

Follow the steps 1 to 7 from the previous chapter.

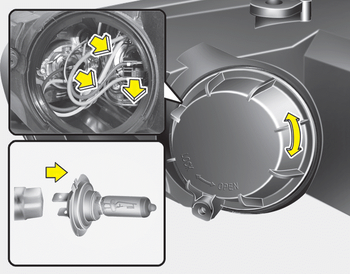

8. Remove the cover by turning it counterclockwise. 9. Disconnect the headlight bulb socketconnector. 10. Unsnap the headlight bulb retaining wire by depressing the end and pushing it upward. 1 ...
