Kia Cee'd: Hands Free System / Hands Free Switch Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / Hands Free System / Hands Free Switch Schematic diagrams

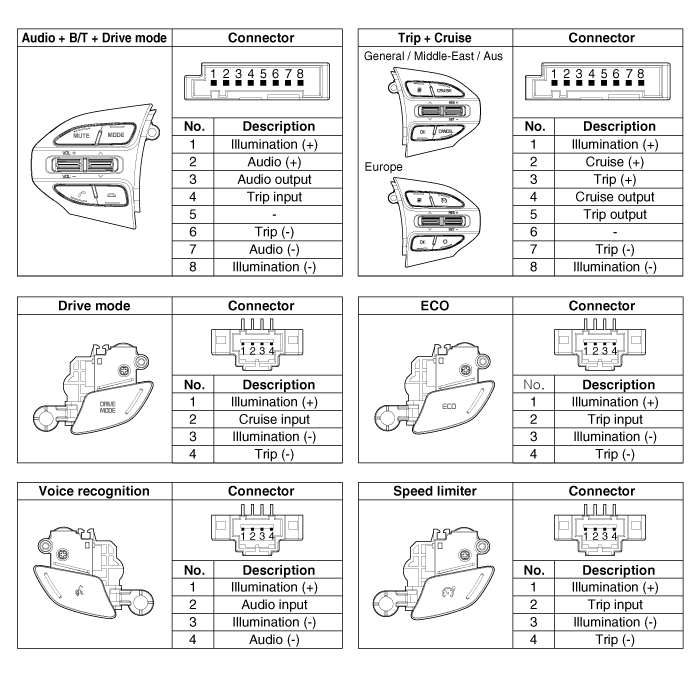

Circuit Diagram

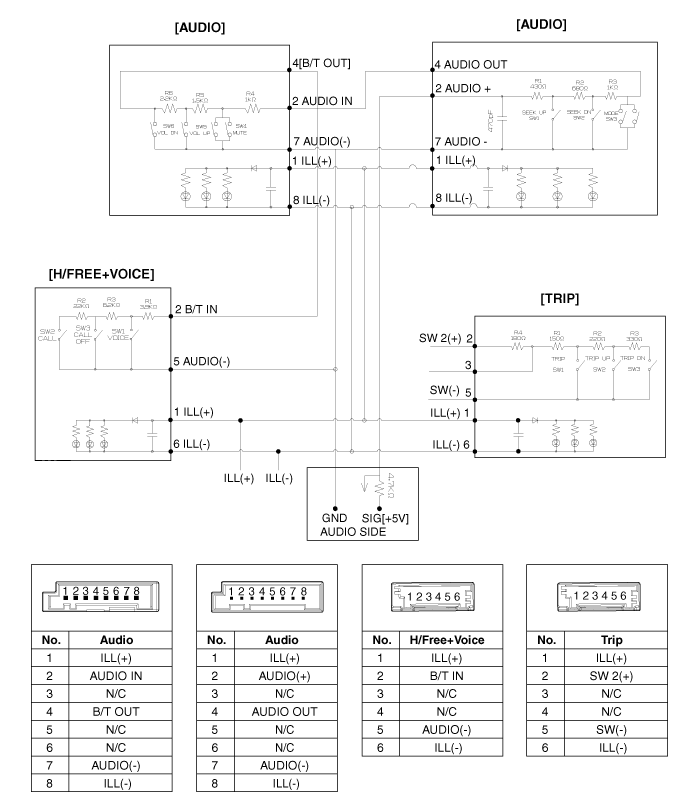

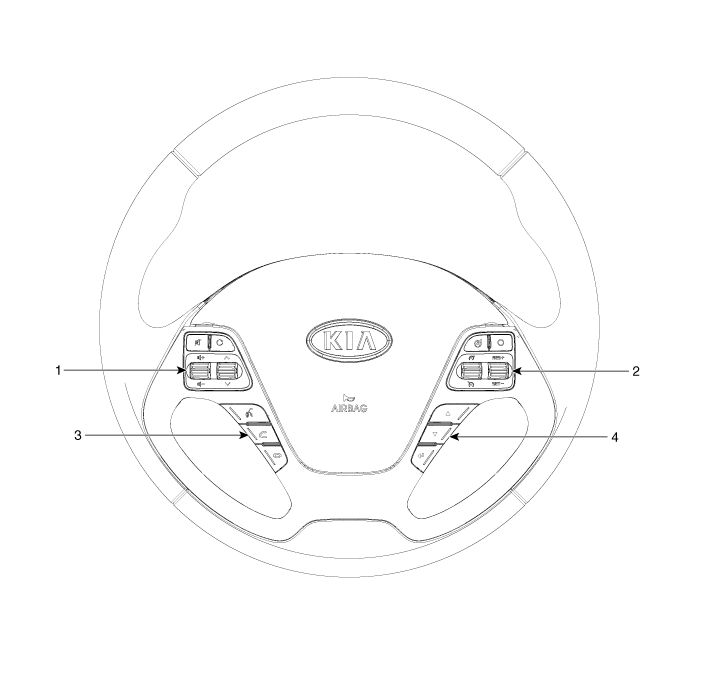

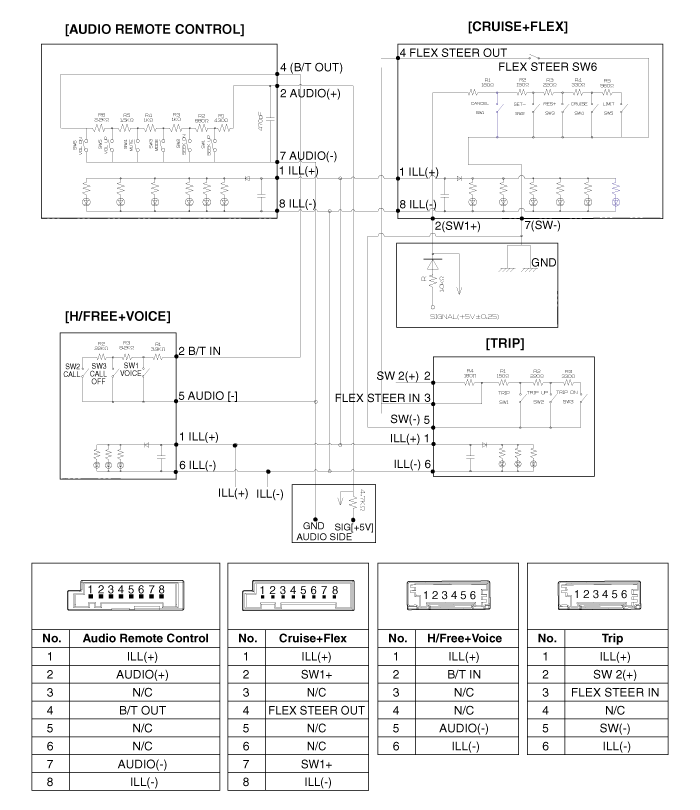

Type A


1. Remote control switch(LH: Audio)
2. Remote control switch(RH: Cruise+Flex)
3. Bluetooth hands free switch
4. Trip switch

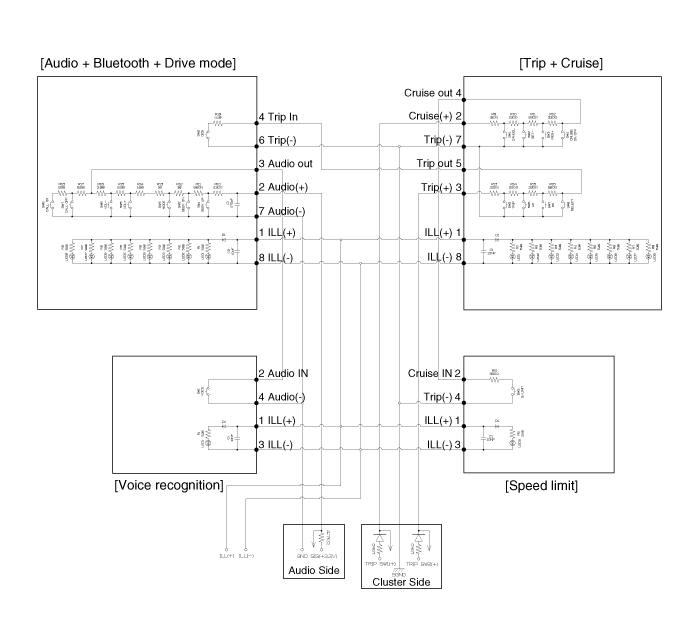

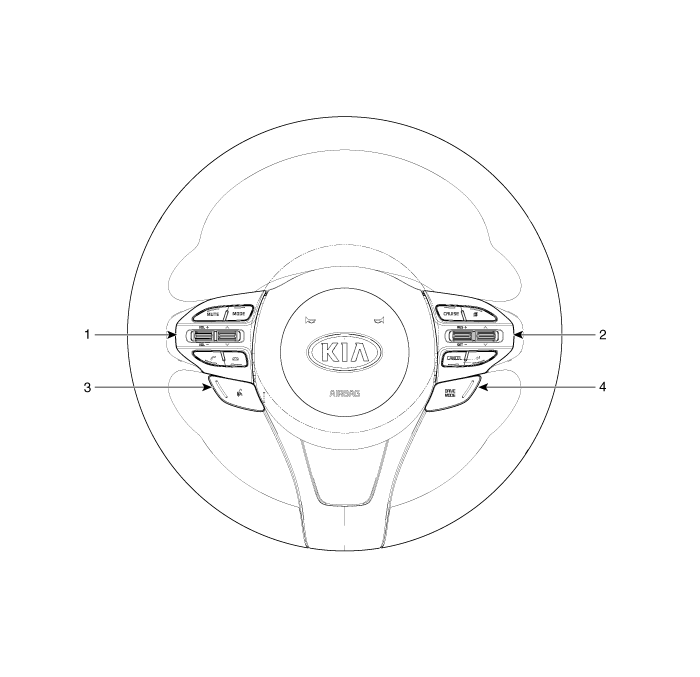

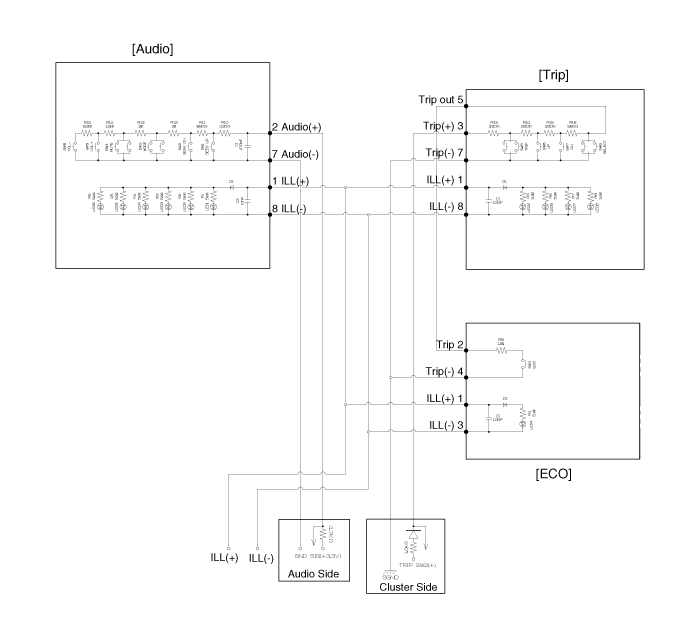

Type B


1. Audio & Drive mode swith
2. Trip & Cruise control switch
3. Voice recognition switch
4. Speed limit switch

Troubleshooting
Troubleshooting   Problem Possible cause Solution Not pairing Bluetooth device of Car is not discoverable mode ...

Hands Free Switch Repair procedures
Inspection Type A 1. Check the audio remote control switch (A) for resistance between connector 3 and 4 in each switch position. [Au ...
