Kia Cee'd: Emergency Call System / Emergency Call (eCall) Unit Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Emergency Call System / Emergency Call (eCall) Unit Components and components location

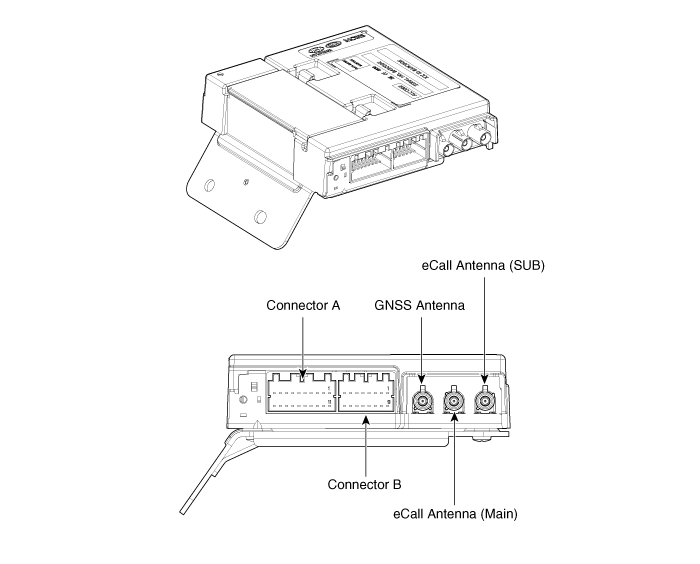

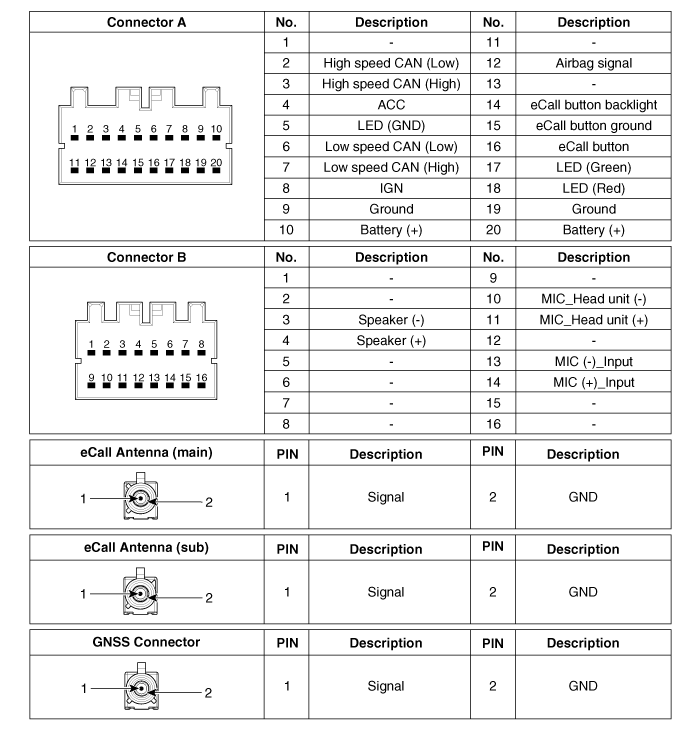

Component

The eCall unit for AVN is equipped in AVN head unit.
