Kia Cee'd: Smart key / Door lock/unlock in an emergency situation
If the smart key does not operate normally, you can lock or unlock the doors by using the mechanical key.

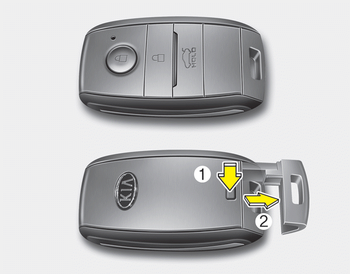

1.Press and hold the release button (1) and remove the mechanical key (2).
2.Insert the key into the hole of the outside door handle. Turn the key toward the rear of the vehicle to unlock and toward the front of the vehicle to lock.
3. To reinstall the mechanical key, put the key into the hole and push it until a click sound is heard.
Smart key precautions
✽ NOTICE
If, for some reason, you happen to lose
your smart key, you will not be able to
start the engine. Tow the vehicle, if
necessary, we recommend that you
contact an authorized ...
Theft-alarm system
Vehicles equipped with a theft alarm system
will have a label attached to the vehicle
with the following words:
1.WARNING
2. SECURITY SYSTEM
This system is designed to provide protection
...
