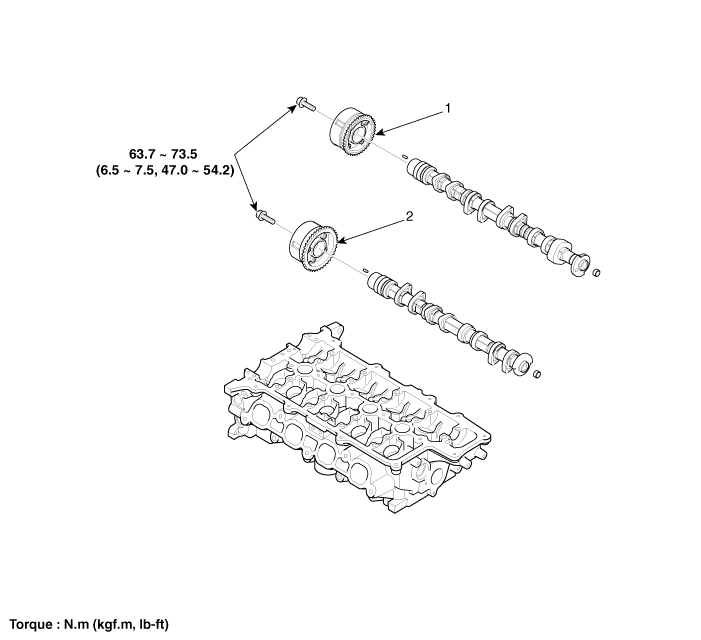

Components


1. Exhaust CVVT
2. Intake CVVT

Cylinder Head Cover Repair procedures
Removal 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Disconnect the intake ...

CVVT & Camshaft Description and operation
Description Continuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is ...
