WARNING - Hot liquids
WARNING
Keep cans and bottles out of direct sunlight. Placing them in a hot vehicle can cause them to explode.
CAUTION
Do not place uncovered cups in the cup holder while the vehicle is in motion. If the liquid spills, electric systems may malfunction.
✽ NOTICE

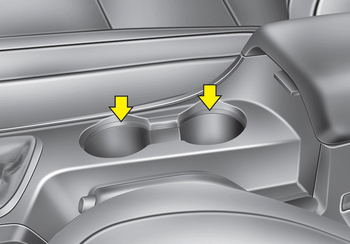

■ Front • Type A

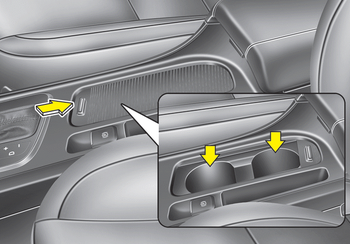

■ Front • Type B
Cups or small beverage cans may be placed in the cup holders.
Type B
To use the cup holder, open the cover.
Rear

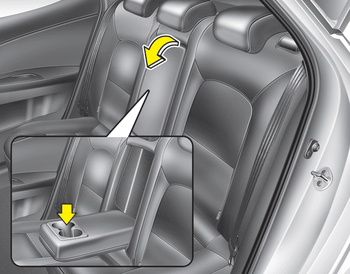

■ Rear
To use the cup holder, pull down the armrest.
Ashtray
