Kia Cee'd: Cylinder Head Assembly / Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Cylinder Head Assembly / Components and components location

Components

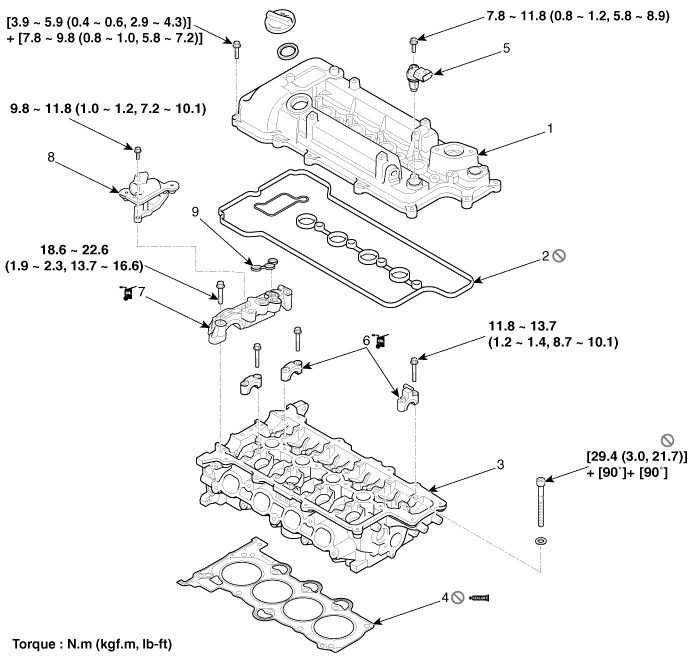

1. Cylinder head cover
2. Cylinder head cover gasket
3. Cylinder head assembly
4. Cylinder head gasket
5. Camshaft position sensor

6. Camshaft bearing cap
7. Camshaft front bearing cap
8. OCV (Oil Control Valve) adapter
9. O-ring

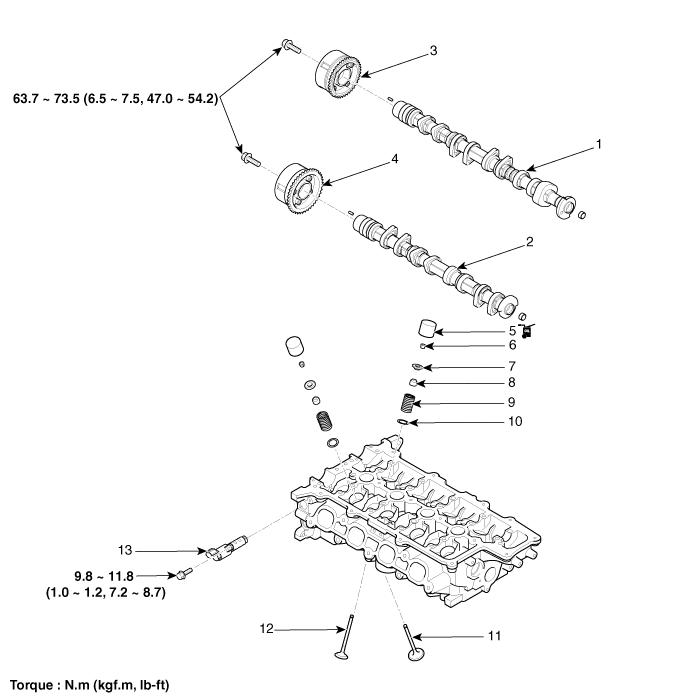

1. Exhaust camshaft
2. Intake camshaft
3. Exhaust CVVT assembly
4. Intake CVVT assembly
5. Mechanical Lash Adjuster (MLA)
6. Retainer lock
7. Retainer

8. Valve stem seal
9. Valve spring
10. Valve spring seat
11. Intake valve
12. Exhaust valve
13. Oil Control Valve (OCV)

Valve clearance adjustment

Valve Clearance Inspection And Adjustment Inspect and adjust the valve clearance when the engine is cold (En ...
